Product Overview
The YUKEN PV2R1-25-F-RAL-43 is a high-performance fixed displacement hydraulic vane pump manufactured by YUKEN, a globally recognized leader in fluid power technology. Operating on the proven intra-vane principle, this pump features a precision-ground rotor, balanced cam ring, and high-strength vanes that deliver smooth, low-pulsation flow across the entire operating range. The PV2R1 series is engineered for industrial circuits requiring quiet operation, high volumetric efficiency, and long service life under continuous duty. With a nominal displacement of 25 cm³/rev, this model is ideally suited for integration into medium-pressure hydraulic power units, machine tool systems, and general industrial machinery where reliable flow stability is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Fixed Displacement) |
| Model Designation | PV2R1-25-F-RAL-43 |
| Nominal Displacement | 25 cm³/rev (approx. 25 mL/rev) |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar rated) |
| Mounting & Connection | Standard ISO / YUKEN Flange Interface |
| Rotation Direction | Clockwise (viewed from shaft end) |
| Shaft Type | Straight keyed shaft (standard) |
| Porting Configuration | Flange mount (F), Rear inlet / Rear outlet (RAL) |
| Seal Material | NBR (Nitrile) standard |
Engineering Features & Advantages
- Precision Vane Performance: The intra-vane design maintains optimal vane tip contact with the cam ring, ensuring high volumetric efficiency, minimal internal leakage, and consistent flow output even at elevated pressures.
- Low Noise Operation: Hydraulically balanced cam ring and precision-machined components significantly reduce pressure pulsation and audible noise, making the PV2R1 ideal for noise-sensitive industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust bearing support and wear-resistant vane materials for extended service intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing mounting or plumbing.
- High Volumetric Efficiency: Tight internal clearances and precision surface finishes minimize slip losses, delivering more usable flow per unit of input power.
Typical Industrial Applications
This YUKEN PV2R1-25-F-RAL-43 vane pump is commonly
PRODUCT IMAGES

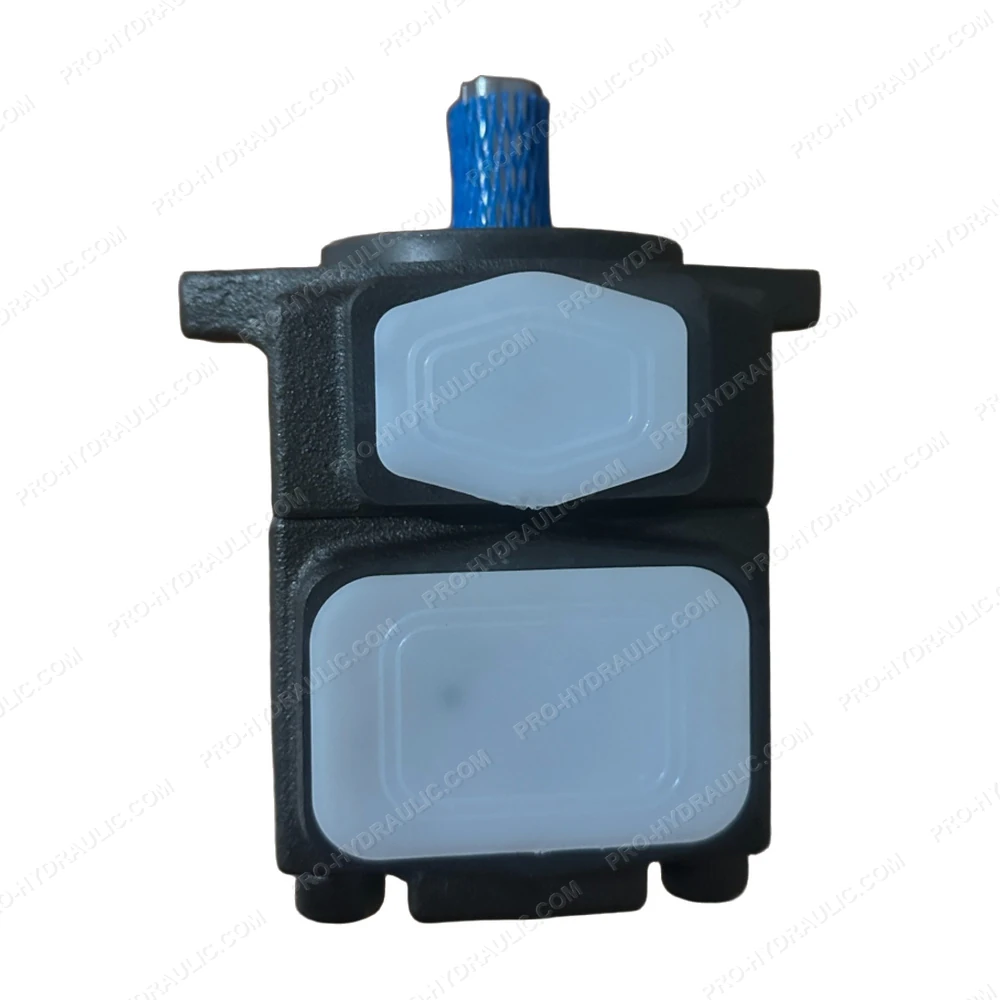

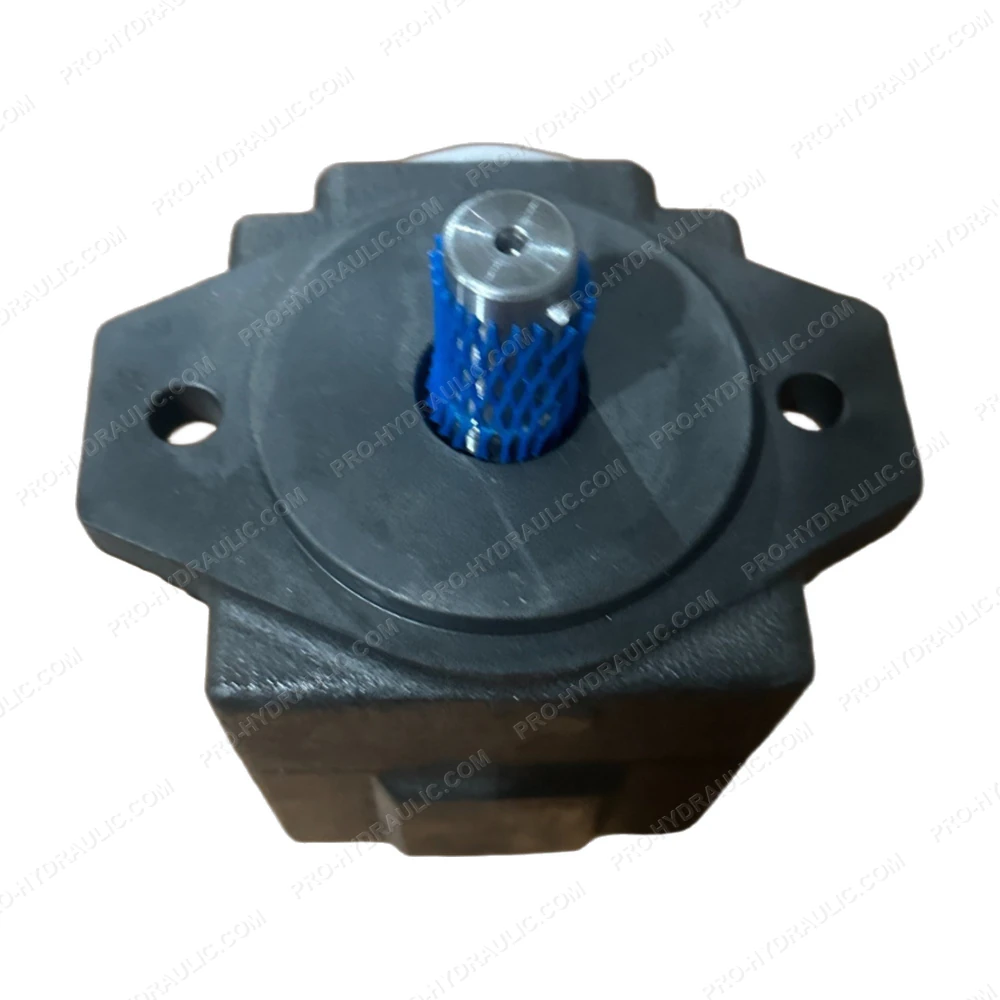

YUKEN PV2R1-25-F-RAL-43 Hydraulic Vane Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN PV2R1-25-F-RAL-43 Vane Pump. This Japan-made hydraulic component features a balanced vane design, delivering reliable, low-noise fluid power for heavy-duty industrial systems.
