The YUKEN PV2R12-6-65-F-REAR-42 is a heavy-duty industrial hydraulic vane pump engineered for reliable fluid power delivery in demanding hydraulic systems. This fixed displacement double vane pump features a 6 cm³/rev front cartridge and a 65 cm³/rev rear cartridge, providing dual independent flow outputs from a single drive shaft. Designed for continuous operation, it delivers smooth, low-pulsation performance with high volumetric efficiency.
YUKEN PV2R12-6-65-F-REAR-42 Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Fixed displacement double vane pump |
| Displacement (Front) | 6 cm³/rev |
| Displacement (Rear) | 65 cm³/rev |
| Max. Operating Pressure | 210 bar (front), 175 bar (rear) |
| Speed Range | 600–1800 rpm |
| Mounting | SAE 2-bolt flange (standard) |
| Port Connections | SAE split flange (front), SAE split flange (rear) |
| Rotation | Clockwise (viewed from shaft end) |
| Fluid Compatibility | Mineral oil, ISO VG 32–68 |
| Operating Temperature | -10°C to +80°C |
| Weight | Approx. 22 kg |
Key Engineering Features
- Dual cartridge design enables two independent flow circuits from one prime mover.
- High volumetric efficiency and low noise operation due to precision-machined vane and rotor assembly.
- Robust cast iron body for high pressure capability and long service life.
- Interchangeable cartridges simplify maintenance and reduce downtime.
- Optimized for continuous industrial duty with minimal pressure ripple.
Industrial Applications
- Hydraulic presses and stamping machines
- Injection molding and die-casting equipment
- Machine tool hydraulic systems
- Lifting and material handling equipment
- Industrial power units and central hydraulic systems
For technical inquiries, dimensional drawings, or replacement support for YUKEN PV2R12-6-65-F-REAR-42, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

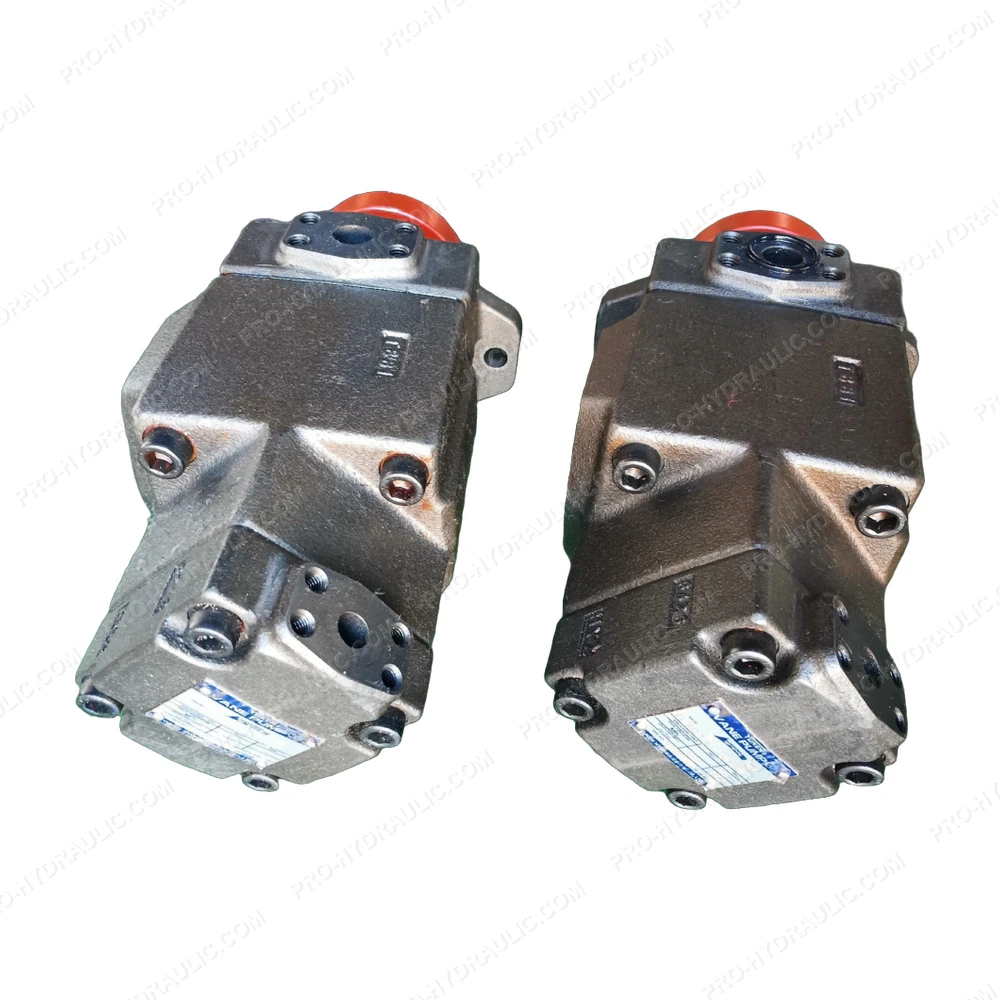

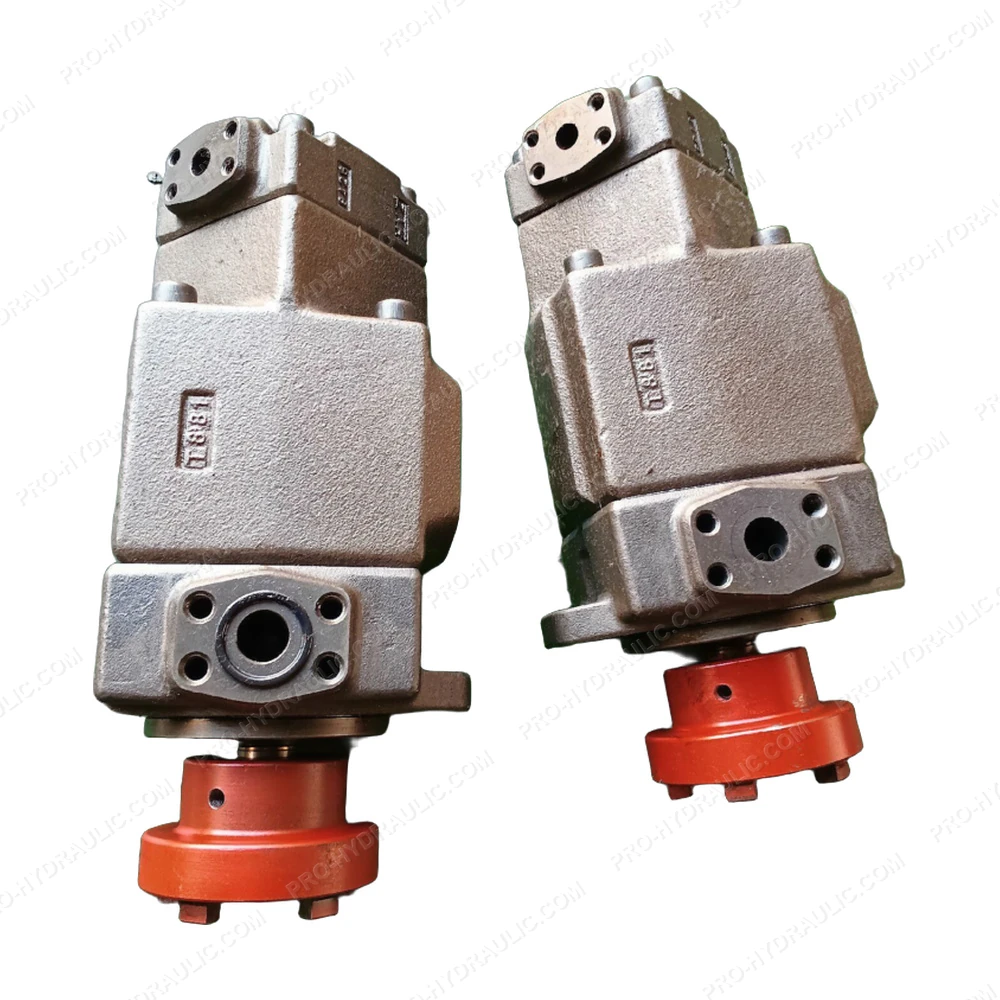

YUKEN PV2R12-6-65-F-REAR-42 Hydraulic Vane Pump
