Product Overview
The YUKEN PV2R2-76-F-RAA-4110 is a high-performance fixed displacement hydraulic vane pump manufactured by YUKEN, a globally recognized leader in fluid power technology. Operating on the proven balanced vane principle, this pump utilizes a precision-ground rotor, hardened vanes, and an elliptical cam ring to deliver smooth, pulsation-free flow across its entire operating range. The PV2R2 series is engineered for demanding industrial circuits where low noise, high volumetric efficiency, and long service life are critical. With a nominal displacement of 76 cm³/rev, this model serves as a reliable primary pressure source in medium-to-high pressure hydraulic systems, converting mechanical drive energy into consistent hydraulic power for continuous-duty machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Fixed Displacement) |
| Model Designation | PV2R2-76-F-RAA-4110 |
| Nominal Displacement | 76 cm³/rev |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar rated) |
| Mounting & Connection | Standard ISO / YUKEN Flange Interface |
| Rotation Direction | Clockwise (viewed from shaft end) |
| Shaft Type | Straight keyed shaft, standard SAE configuration |
| Porting Configuration | Flange-mounted inlet and outlet ports |
Engineering Features & Advantages
- Precision Performance: The balanced vane design with precision-ground cam ring and hardened vanes ensures stable volumetric efficiency, minimal internal leakage, and consistent flow output even at elevated pressure levels.
- Low Noise Operation: YUKEN’s optimized vane geometry and hydraulic balancing significantly reduce pressure pulsation and airborne noise, making the PV2R2 series ideal for noise-sensitive industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust bearing support and wear-resistant internal components that extend maintenance intervals and reduce total cost of ownership.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing mounting flanges, couplings, or hydraulic circuits.
- Cartridge-Type Construction: Simplified maintenance through removable cartridge assembly, allowing rapid inspection and replacement of the pumping element without disturbing the system piping.
Typical Industrial Applications
The YUKEN PV2R2-76-F-RAA-4110 is widely deployed in heavy industrial scenarios including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic systems, and CNC machine tool power units. Its combination of high displacement, low noise, and dependable continuous-duty performance makes it a preferred choice for hydraulic power packs, die-casting equipment, and general industrial press circuits requiring stable medium-to-high pressure flow.
PRODUCT IMAGES

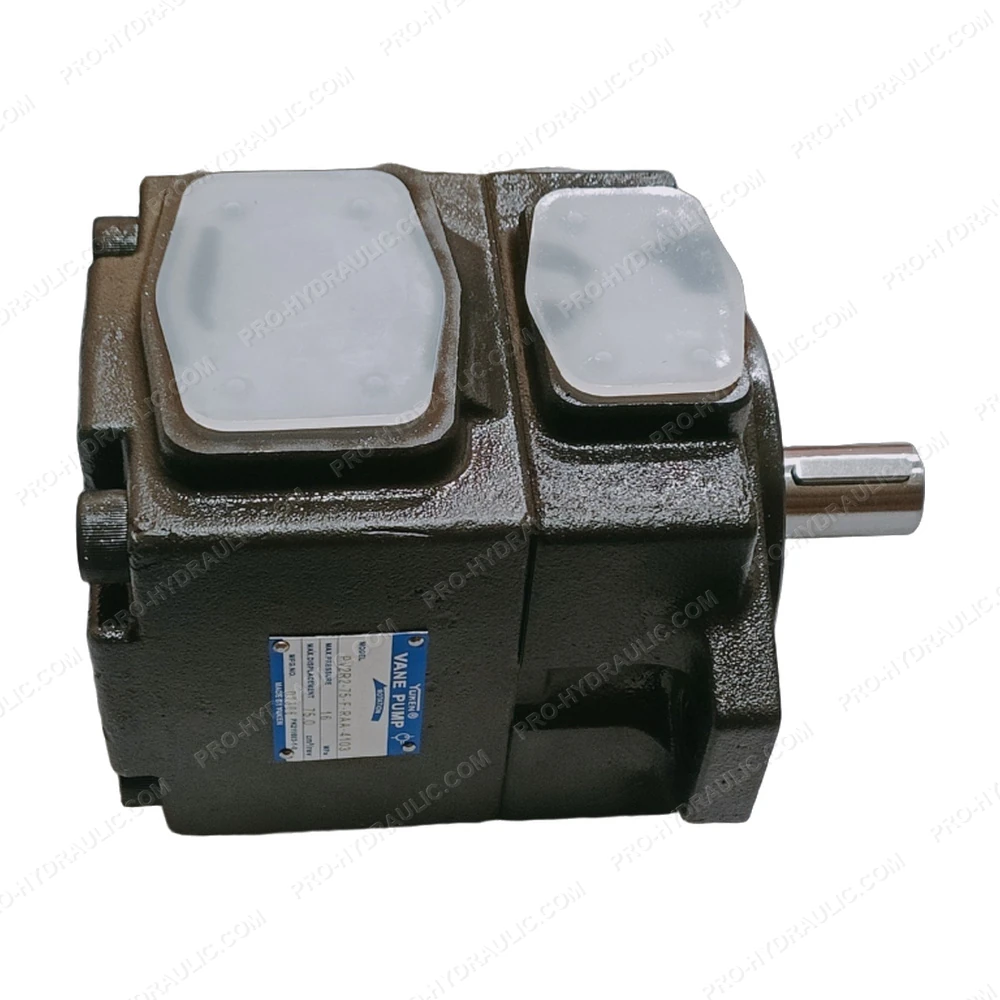

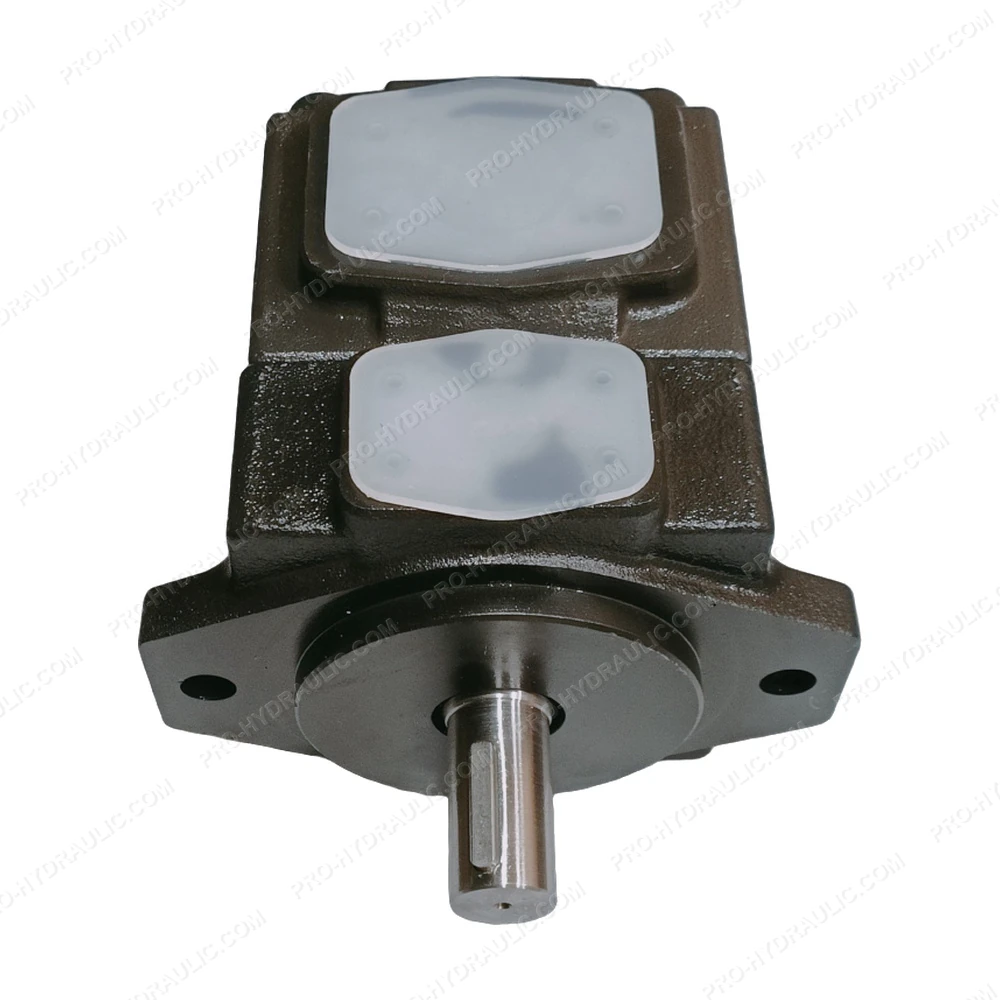

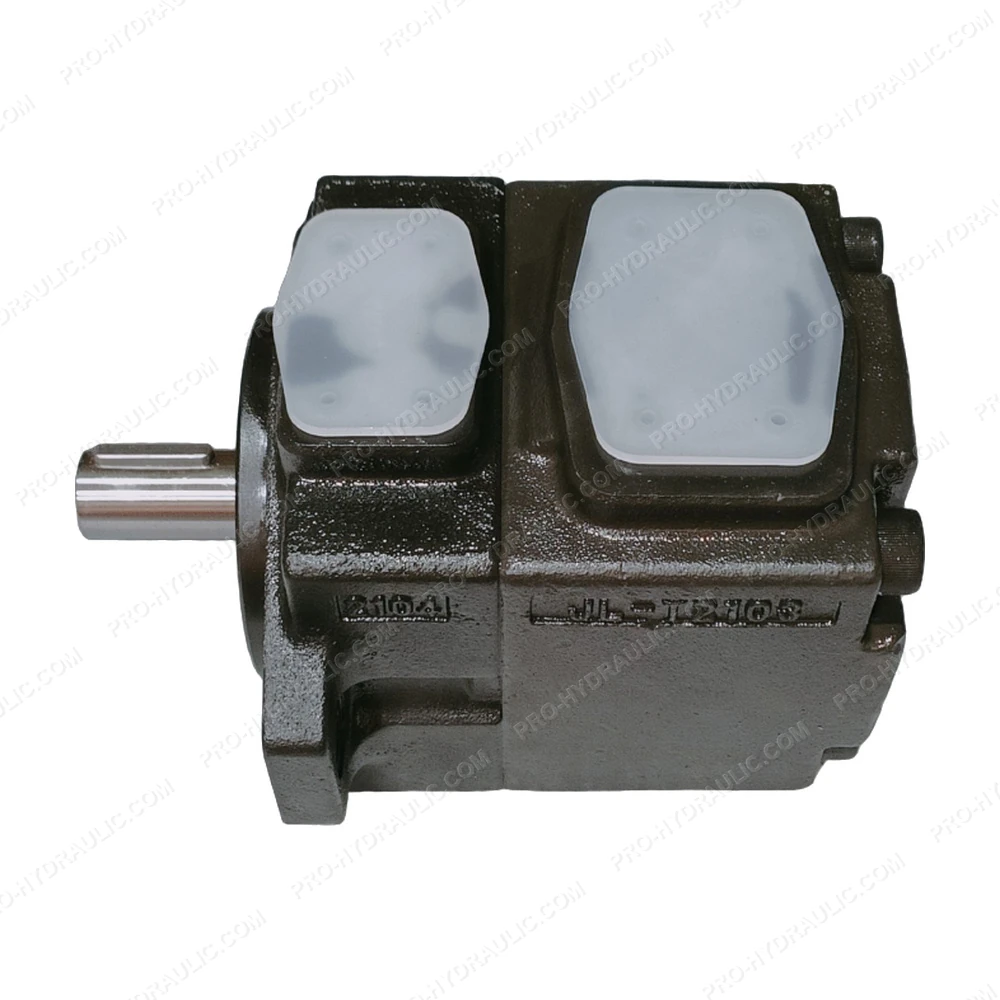

YUKEN PV2R2-76-F-RAA-4110 Hydraulic Vane Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN PV2R2-76-F-RAA-4110 Variable Displacement Vane Pump. This Japan-made hydraulic component features a pressure-compensated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
