The YUKEN SB1100-06-140-25-4-5005 is a heavy-duty industrial proportional valve engineered for precise electro-hydraulic flow and pressure control in demanding hydraulic systems. It features a robust spool design with proportional solenoid actuation, ensuring accurate response and repeatability under varying load conditions.
YUKEN SB1100-06-140-25-4-5005 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Proportional Directional Valve |
| Nominal Size | NG6 (CETOP 3) |
| Max. Operating Pressure | 315 bar |
| Max. Flow Rate | 40 L/min |
| Actuation | Proportional Solenoid |
| Coil Voltage | 24 V DC |
| Electrical Connection | DIN 43650 Connector |
| Mounting | Subplate (ISO 4401) |
| Fluid Temperature Range | -20 °C to +70 °C |
| Viscosity Range | 10 to 400 cSt |
| Filtration | ISO 4406 18/16/13 |
Key Engineering Features
- Proportional solenoid with integrated position feedback for precise control
- High-resolution spool design ensures minimal hysteresis and excellent repeatability
- Rugged construction with corrosion-resistant materials for extended service life
- Compatible with mineral oil and synthetic hydraulic fluids
- Compact CETOP 3 mounting pattern for space-saving installation
Industrial Applications
- Injection molding machines
- Hydraulic presses
- Machine tools and CNC equipment
- Material handling and lifting systems
- Marine and offshore hydraulic systems
For technical inquiries, dimensional drawings, or replacement support for YUKEN SB1100-06-140-25-4-5005, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

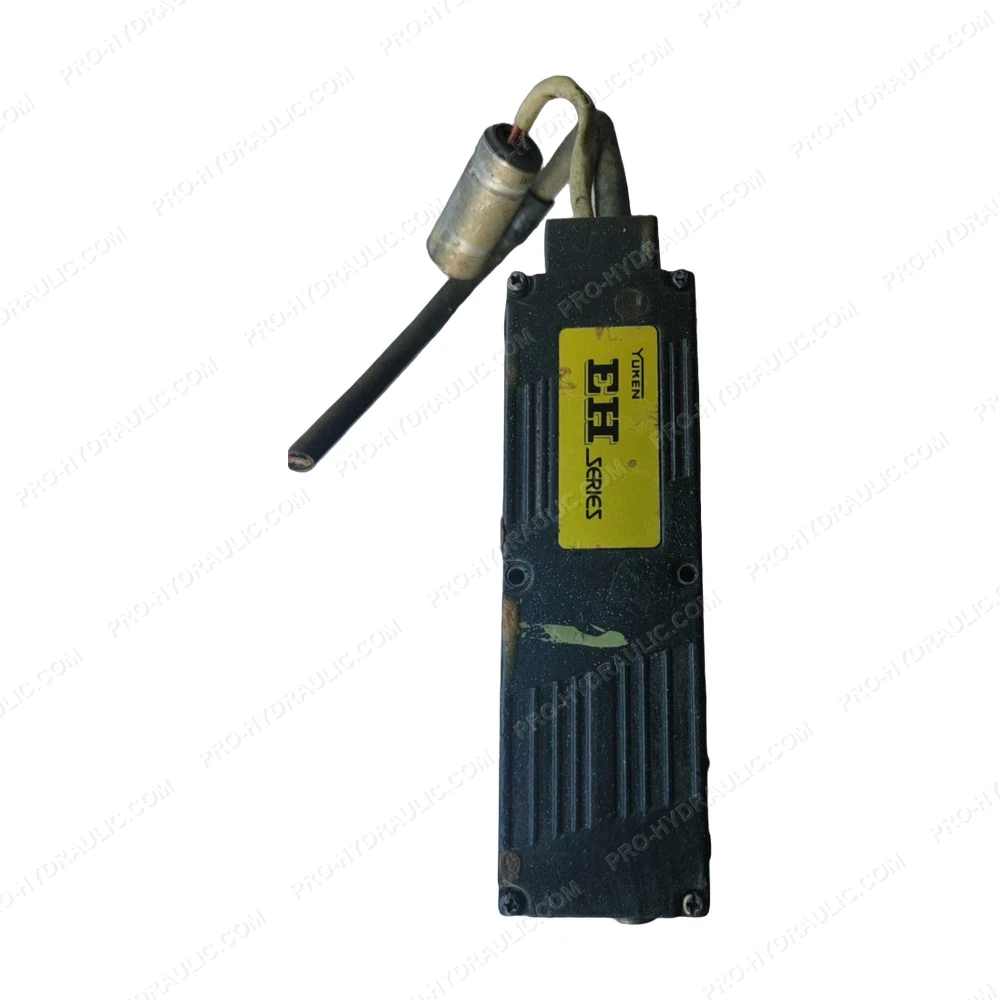

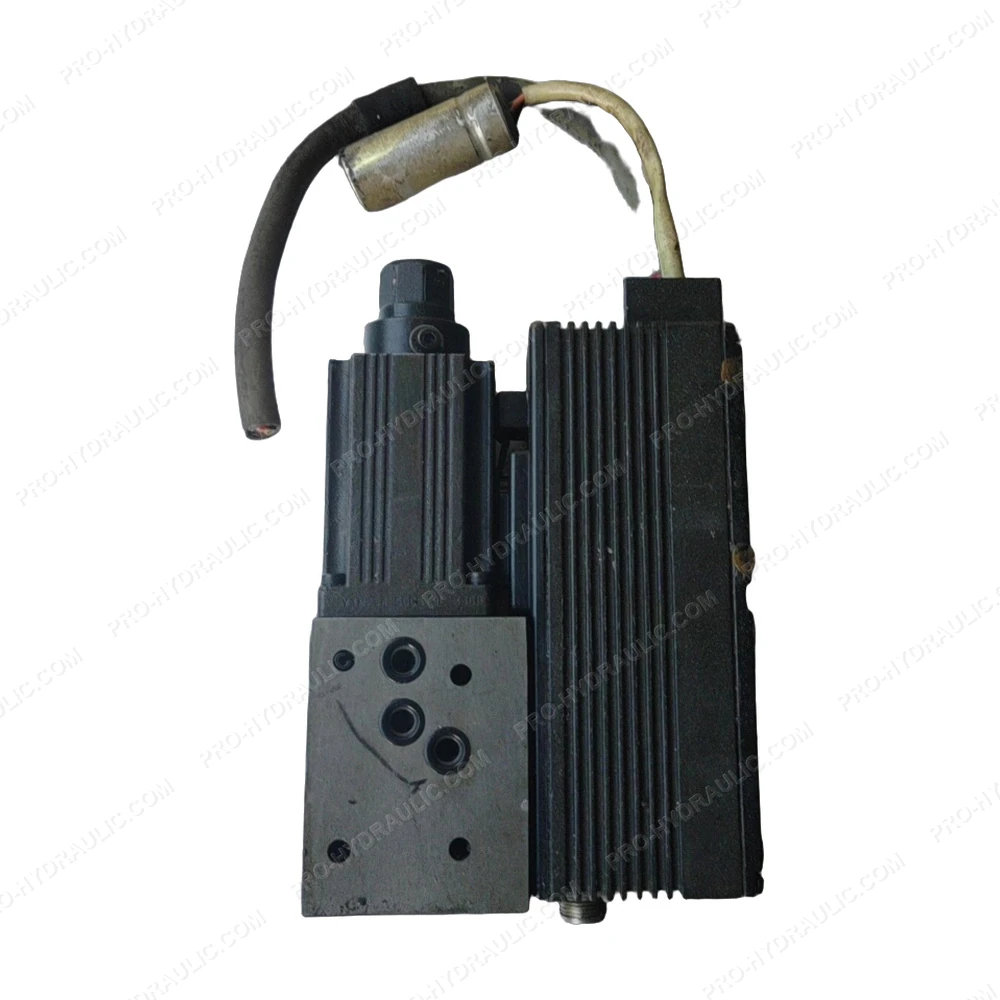

YUKEN SB1100-06-140-25-4-5005 Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN SB1100-06-140-25-4-5005 Proportional Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow control for demanding industrial systems.
