The YUKEN SB1110-B-2027 is a heavy-duty industrial proportional control valve engineered for precise electro-hydraulic flow and pressure regulation in demanding hydraulic systems. It provides smooth, continuous control of actuator speed and force through proportional solenoid actuation, ensuring accurate response and repeatable performance under varying load conditions.
YUKEN SB1110-B-2027 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Proportional Directional Control Valve |
| Actuation | Proportional Solenoid, 24 V DC |
| Max. Operating Pressure | 315 bar (Port P, A, B) |
| Rated Flow | Up to 40 L/min at 70 bar ΔP |
| Spool Type | Closed-center, 4-way, 3-position |
| Hysteresis | ≤ 3% of rated command signal |
| Response Time | ≤ 30 ms (10–90% step) |
| Fluid Temperature Range | -20 °C to +70 °C |
| Viscosity Range | 10–400 cSt |
| Mounting Interface | ISO 4401 / CETOP 5 (NG10) |
| Electrical Connection | DIN 43650 connector |
| Protection Class | IP65 (with mating connector) |
Key Engineering Features
- Proportional solenoid with integrated position feedback for precise spool control
- Low hysteresis and high repeatability for accurate flow and pressure regulation
- Rugged cast iron body and hardened spool for long service life in high-pressure circuits
- ISO 4401 / CETOP 5 mounting pattern for direct manifold integration
- Compatible with YUKEN proportional amplifier modules for closed-loop control
Industrial Applications
- Injection molding machines – precise injection speed and pressure control
- Hydraulic presses – proportional force and position regulation
- Machine tools – smooth feed and rapid traverse control
- Steel and metal processing – accurate roll gap and tension control
- Test stands and simulation equipment – dynamic flow and pressure profiling
For technical inquiries, dimensional drawings, or replacement support for YUKEN SB1110-B-2027, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

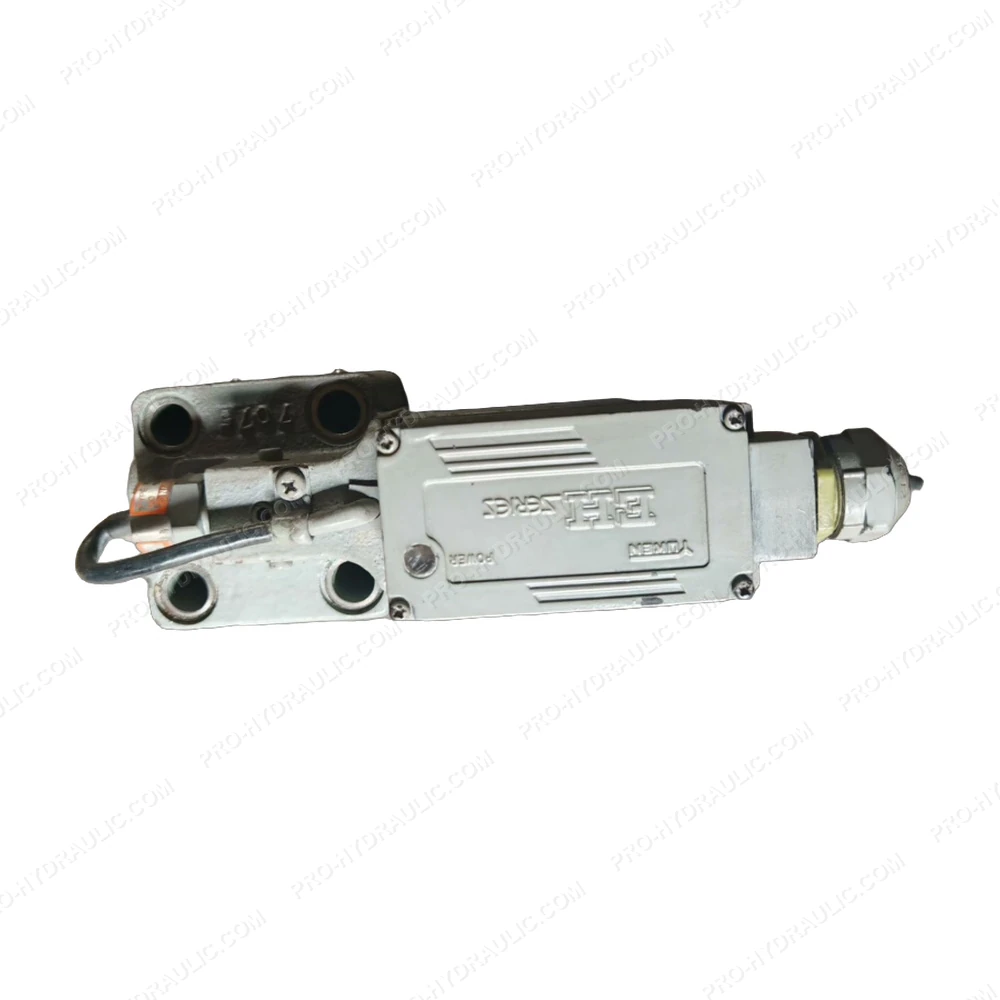

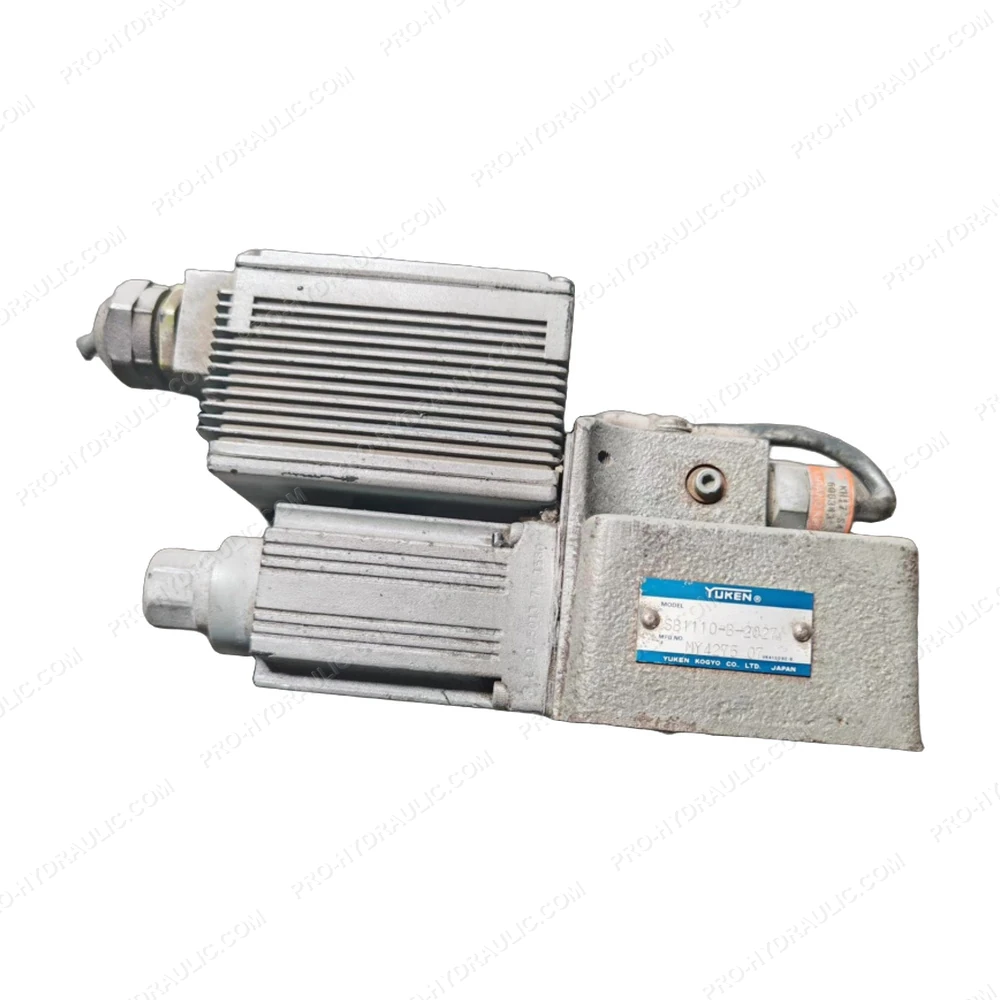

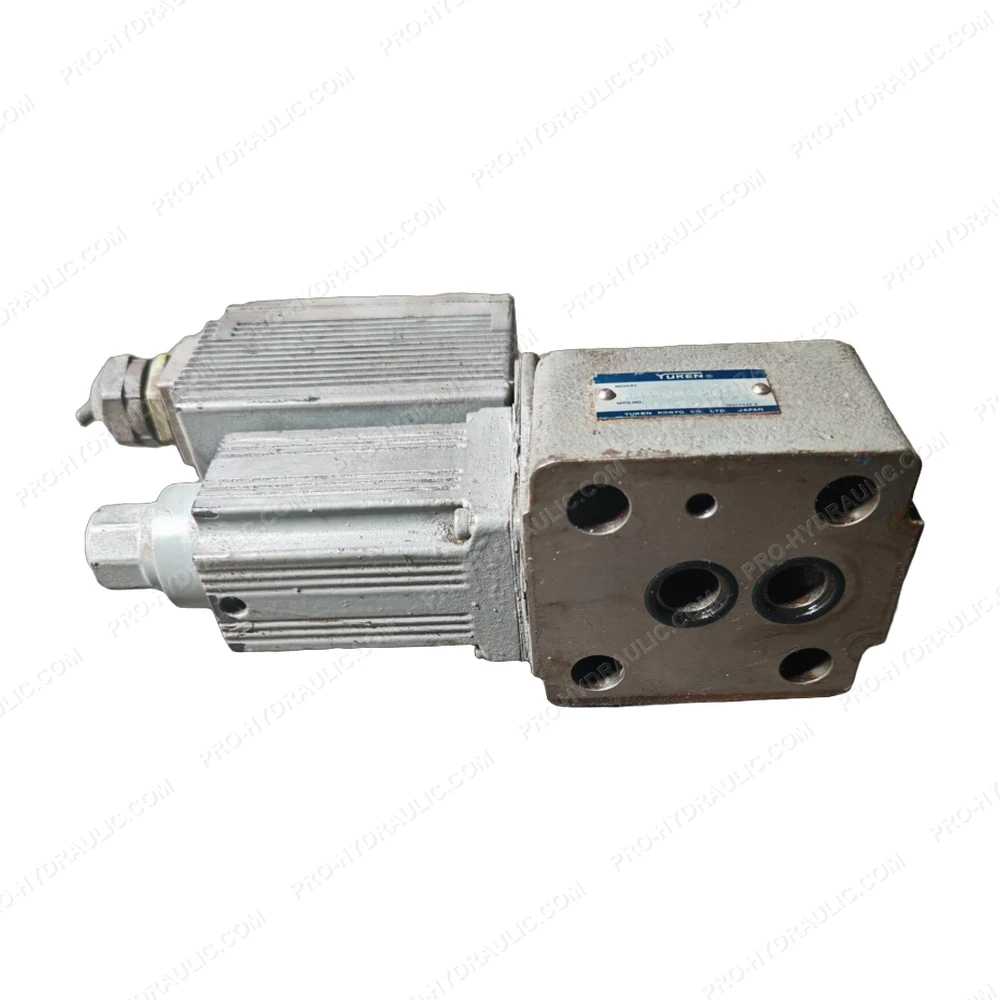

YUKEN SB1110-B-2027 Proportional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN SB1110-B-2027 Proportional Control Valve. This precision-engineered industrial component delivers reliable performance and accurate operation for demanding industrial systems.
