Product Overview
The YUKEN SB1210-06-28-1002 is a precision-engineered hydraulic cartridge valve belonging to Yuken’s SB series of slip-in cartridge logic elements. Designed for use within Yuken directional valve assemblies, this two-way cartridge valve functions as a high-performance pilot-operated directional control element, enabling reliable switching, load holding, and directional control of hydraulic flow in demanding industrial circuits. The SB1210-06-28-1002 is engineered to deliver fast response, minimal pressure drop, and leak-free sealing, making it a critical component in manifold-mounted directional control systems where space efficiency and repeatable performance are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Cartridge Valve (Directional Control) |
| Model Designation | SB1210-06-28-1002 |
| Series | Yuken SB Series Slip-In Cartridge Logic Element |
| Nominal Size | 06 (NG6 / CETOP 3 equivalent cavity) |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Flow Capacity | Up to 60 L/min (dependent on circuit configuration) |
| Actuation Type | Pilot-operated directional control |
| Mounting & Connection | Slip-in cartridge, manifold-mounted per Yuken standard cavity |
| Sealing | Precision metal-to-metal seat with elastomer seals |
Engineering Features & Advantages
- Precision Directional Control: The SB1210-06-28-1002 provides accurate spool positioning and reliable flow direction switching, ensuring consistent actuator movement in complex hydraulic circuits.
- Fast Response & Low Pressure Drop: Optimized internal flow paths minimize throttling losses and deliver rapid pilot response for high-cycle industrial applications.
- Leak-Free Sealing: Precision-machined seating surfaces ensure minimal internal leakage, supporting stable load holding and accurate pressure control.
- Compact Cartridge Design: Slip-in construction reduces manifold size and simplifies installation, maintenance, and replacement compared to conventional subplate-mounted directional valves.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Yuken OEM standards, ensuring drop-in interchangeability.
Typical Industrial Applications
The YUKEN SB1210-06-28-1002 cartridge valve is widely deployed in manifold-based hydraulic systems across heavy industry, including plastic injection molding machines,
PRODUCT IMAGES

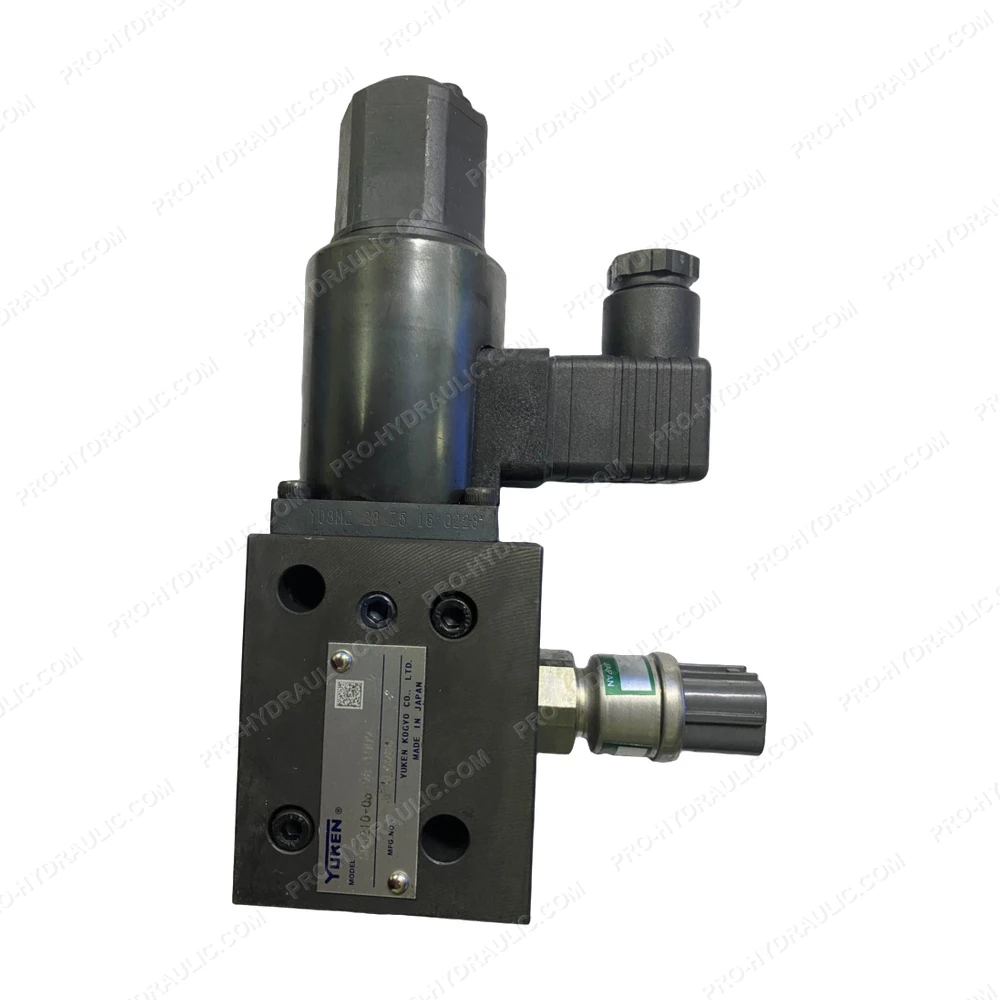

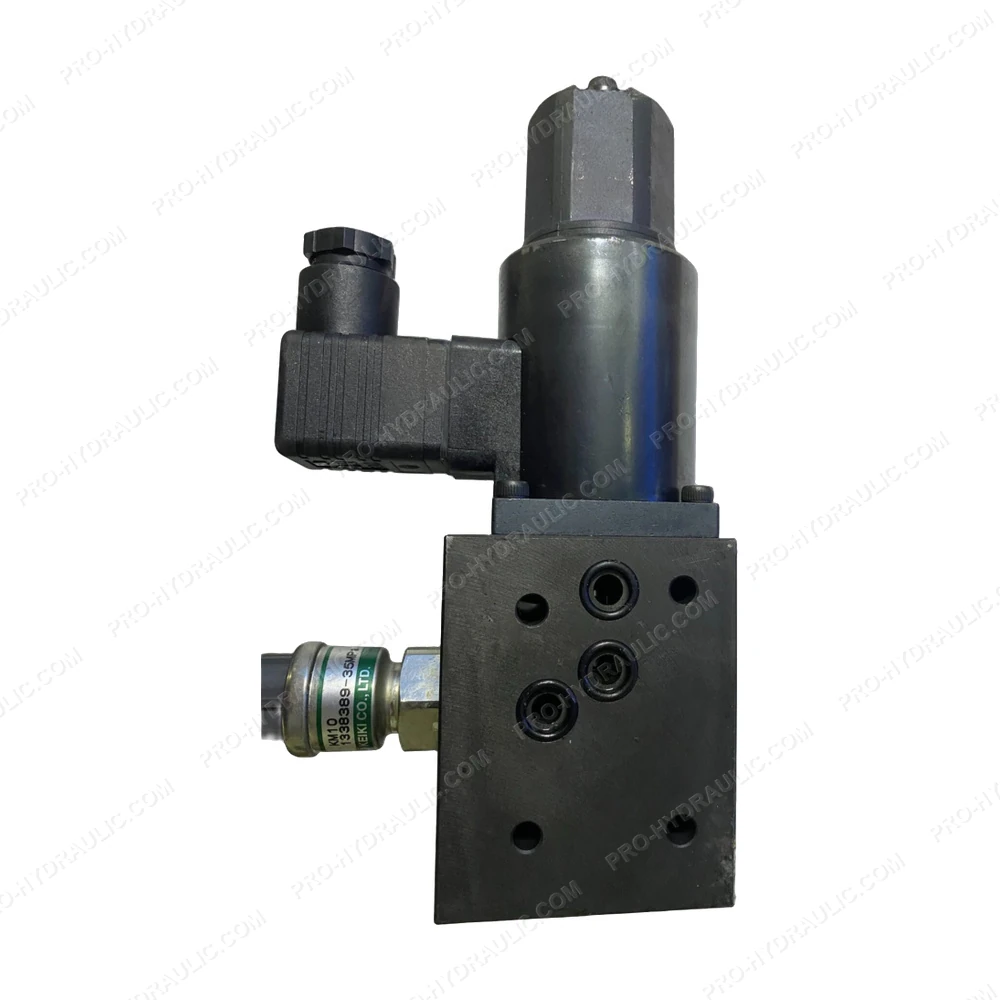

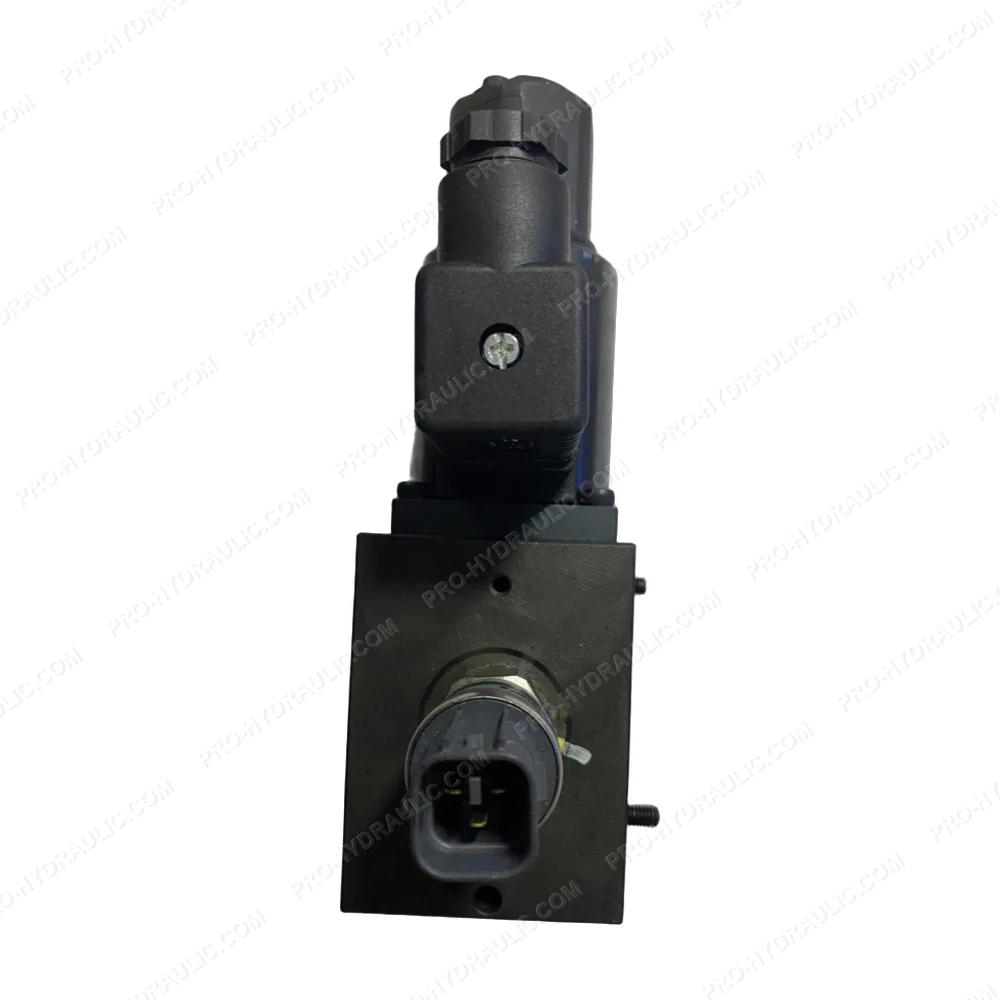

YUKEN SB1210-06-28-1002 Hydraulic Cartridge Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN SB1210-06-28-1002 Solenoid Directional Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
