Product Overview
The YUKEN SVPF-20-70-20 is a high-performance variable displacement hydraulic vane pump engineered by YUKEN, a globally recognized leader in precision fluid power technology. Operating on the proven balanced vane principle, this pump utilizes a hydraulically balanced rotor and precision-ground vanes that track against a movable cam ring to vary the displacement and maintain constant pressure or flow as demanded by the system. The SVPF series is specifically designed for industrial circuits requiring smooth, low-pulsation output with the ability to automatically adjust delivery to match actuator demand, thereby reducing heat generation and power consumption. With a nominal displacement of 70 cm³/rev and a 20-series pressure-compensated control configuration, the SVPF-20-70-20 serves as a reliable, energy-efficient power source for continuous-duty hydraulic systems in demanding manufacturing environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Variable Displacement) |
| Model Designation | SVPF-20-70-20 |
| Nominal Displacement | 70 cm³/rev (approx. 4.27 in³/rev) |
| Pressure Control Type | 20-Series Pressure Compensator (Constant Pressure / Variable Flow) |
| Operating Pressure | Up to 175 bar (2,540 psi) continuous duty — standard industrial grade |
| Speed Range | 600 – 1,800 rpm (nominal operating range) |
| Mounting & Connection | Standard ISO / YUKEN SAE flange interface with keyed shaft |
| Hydraulic Fluid | Mineral-based hydraulic oil, ISO VG 32–68, cleanliness ISO 4406 18/15 or better |
| Control Response | Fast pressure-compensator response with minimal pressure overshoot |
Engineering Features & Advantages
- Precision Performance: The hydraulically balanced rotor and precision-ground vanes deliver exceptionally smooth, low-pulsation flow, minimizing noise and vibration while extending the service life of downstream valves and actuators.
- Variable Displacement Efficiency: The 20-series pressure compensator automatically reduces displacement as system pressure approaches the set point, cutting power consumption and heat generation during holding or idle phases.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust cam ring and durable cartridge design that withstands high duty cycles and contaminated environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN SVPF series mounting footprints, shaft configurations, and port locations for drop-in OEM replacement.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a nominal displacement of 70 cm³/rev and a 20-series pressure-compensated control configuration, the SVPF-20-70-20 serves as a reliable, energy-efficient power source for continuous-duty hydraulic systems in demanding manufacturing environments.
PRODUCT IMAGES

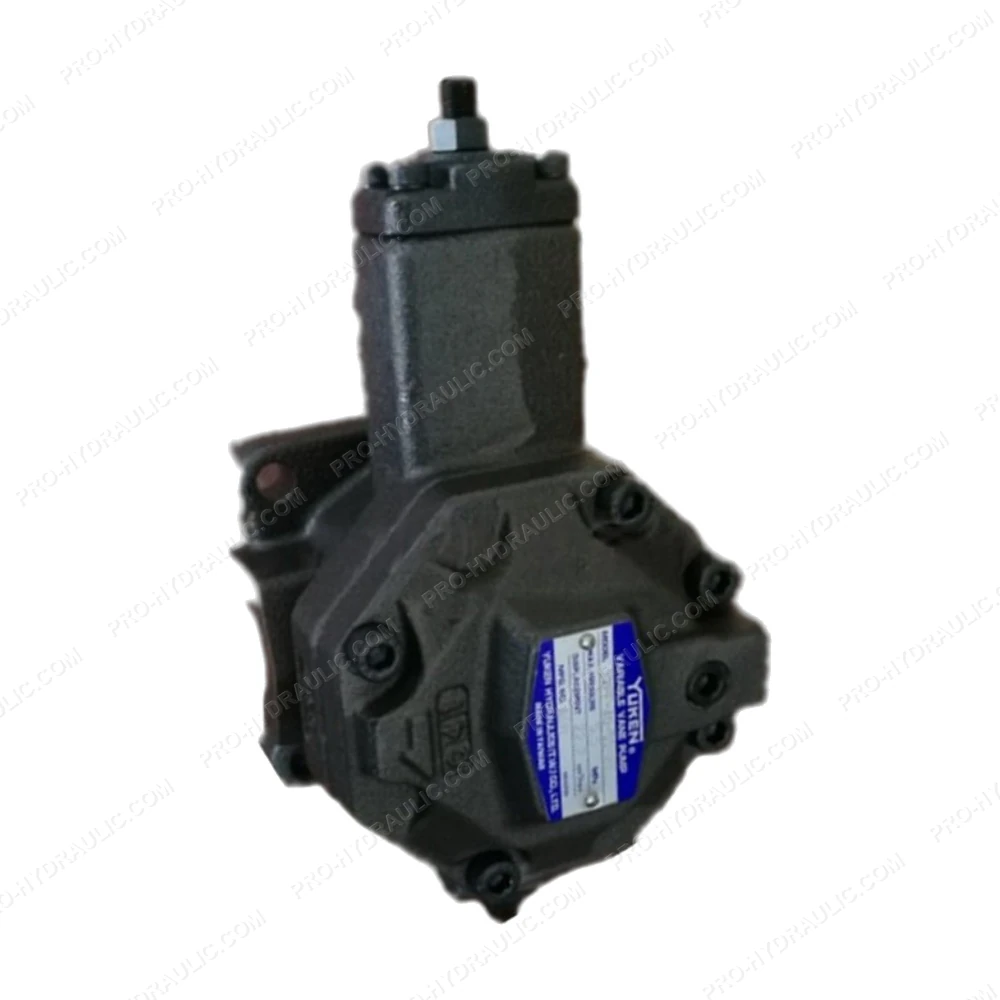

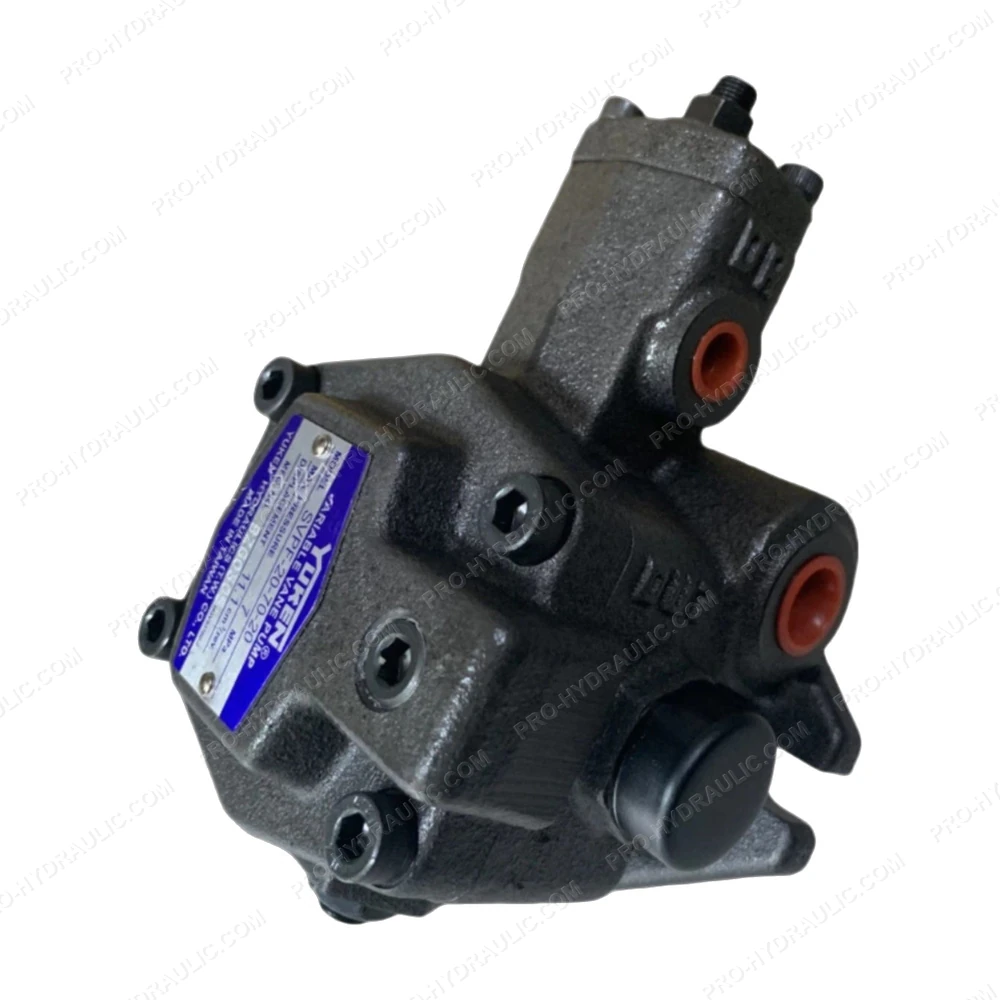

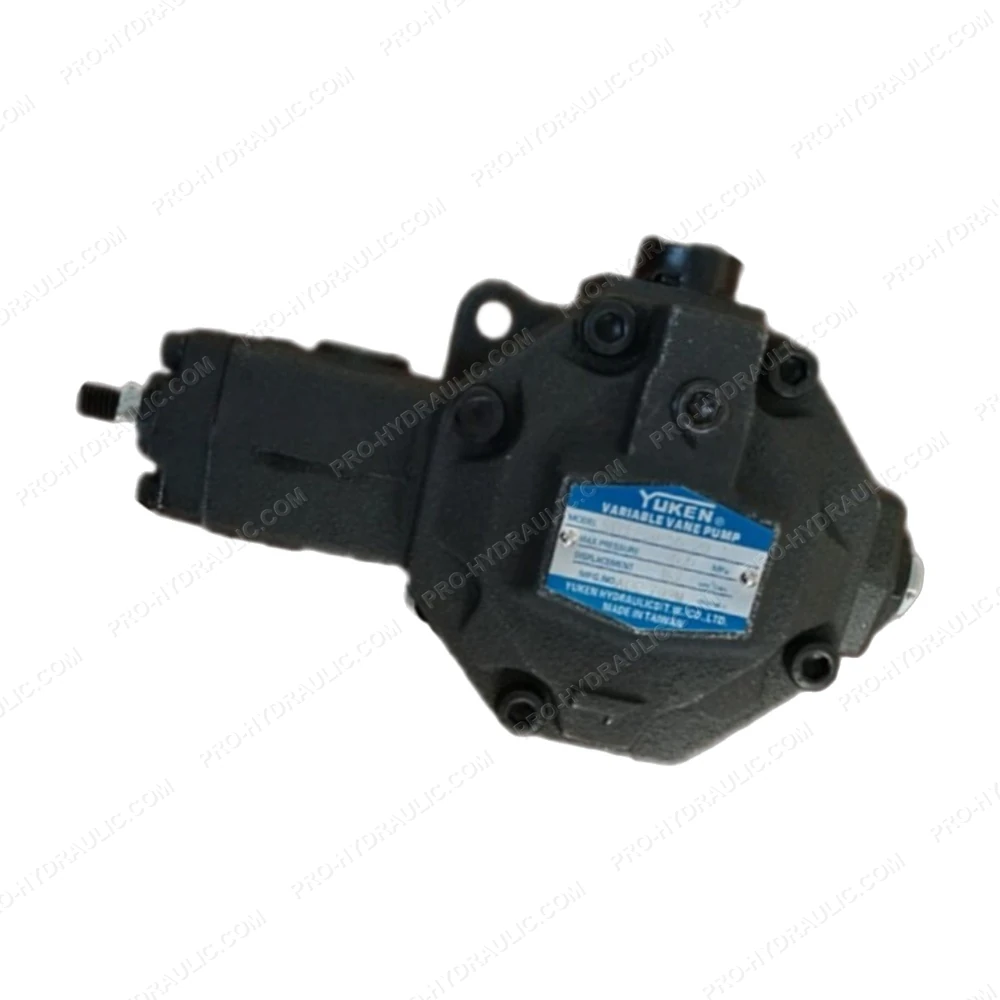

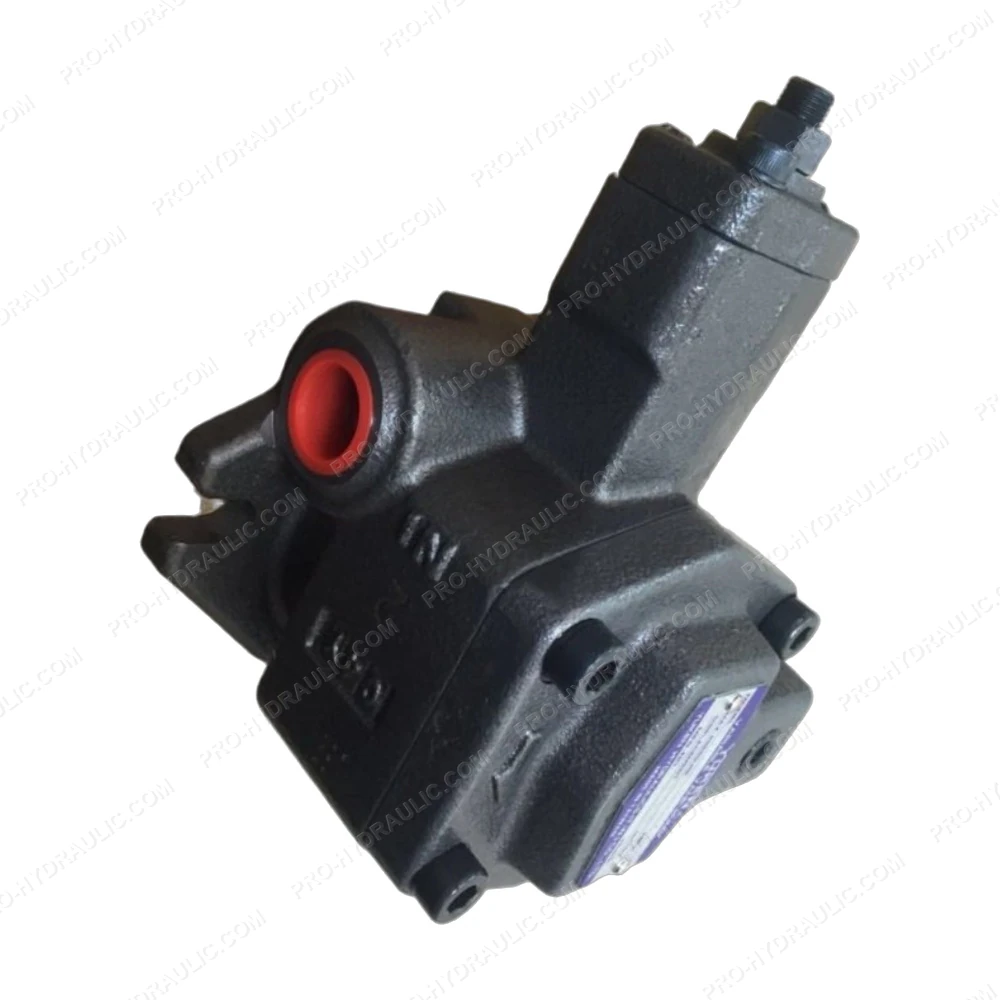

YUKEN SVPF-20-70-20 Variable Displacement Hydraulic Vane Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN SVPF-20-70-20 Solenoid Operated Directional Valve. This Japan-made 20 MPa hydraulic component features a high-pressure solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
