Product Overview
The YUKEN UCF1G-04-30-30 is a precision-engineered flow control and check valve module from YUKEN’s UCF1G series, designed for accurate regulation of actuator speed in industrial hydraulic circuits. This modular valve combines a pressure-compensated flow control function with an integral check valve, enabling controlled flow in one direction and unrestricted reverse flow. The UCF1G-04-30-30 is a sandwich-style modular valve that mounts between a directional control valve and a subplate, providing meter-in or meter-out speed control without additional piping. Manufactured to YUKEN’s exacting tolerances, it delivers stable flow regulation independent of load and pressure fluctuations, making it a reliable choice for demanding industrial hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Flow Control & Modular Valve (with integral check valve) |
| Model Designation | UCF1G-04-30-30 |
| Series | YUKEN UCF1G Modular Flow Control Valve Series |
| Nominal Size | 04 (ISO 4401 / CETOP 5 / NG10 interface) |
| Operating Pressure | Standard Industrial Grade (up to 315 bar rated) |
| Flow Control Range | Adjustable, pressure-compensated metering |
| Mounting & Connection | Sandwich/modular mounting per ISO 4401, NG10 subplate interface |
| Adjustment Type | Manual adjustment (spindle/screw type) |
| Check Valve Function | Integral, free reverse flow |
Engineering Features & Advantages
- Precision Flow Metering: Pressure-compensated spool design maintains a constant set flow rate regardless of load variations, ensuring consistent actuator speed and repeatable machine cycles.
- Integrated Check Valve: Allows unrestricted reverse flow for rapid return strokes, eliminating the need for separate check valve components and simplifying circuit design.
- Modular Sandwich Construction: Mounts directly between directional control valve and subplate per ISO 4401 / NG10 standards, reducing piping, leak points, and installation time.
- Stable Low-Load Performance: Precision spool and sleeve clearances deliver smooth, chatter-free operation even at low flow settings and varying system pressures.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with hardened, wear-resistant internal components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with YUKEN OEM standards for drop-in replacement without modification.
PRODUCT IMAGES

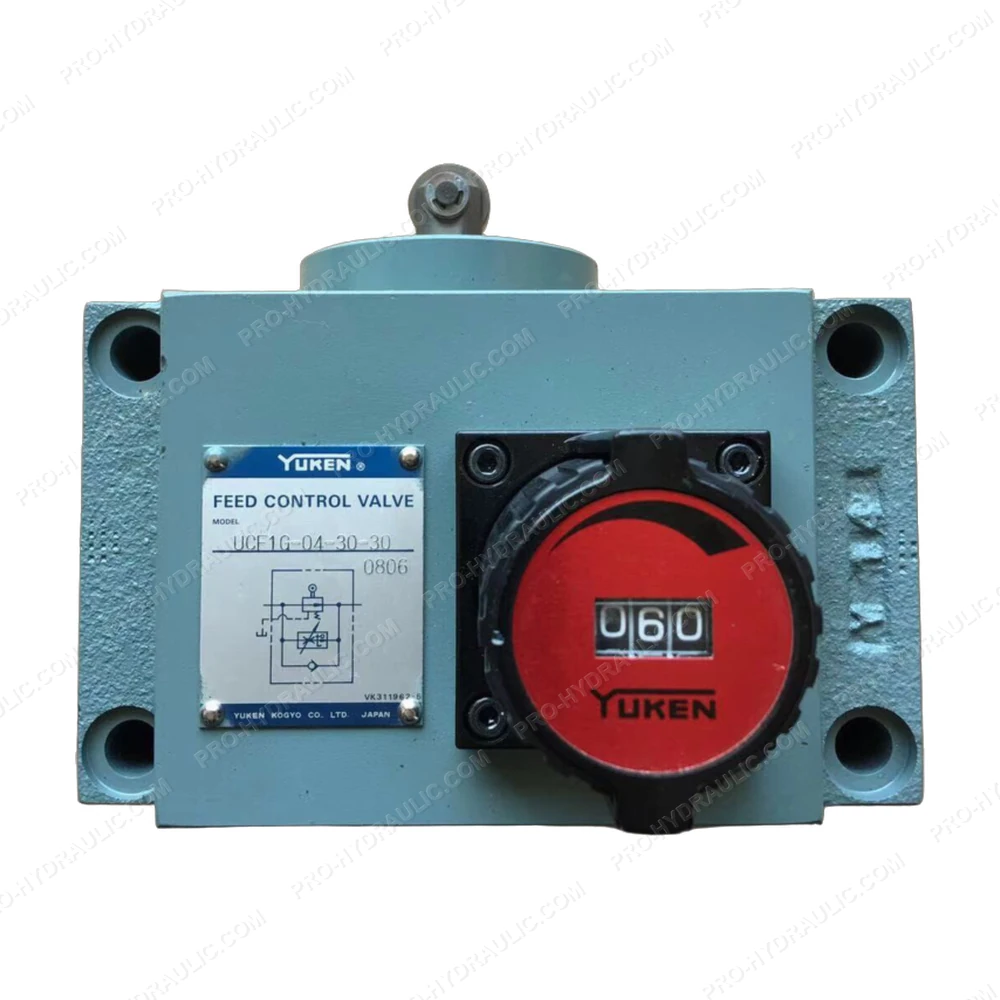

YUKEN UCF1G-04-30-30 Flow Control and Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN UCF1G-04-30-30 Solenoid Operated Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
