Product Overview
The YUTAN DSG-G03-2B2-DL-DC24V is a high-performance solenoid-operated directional control valve engineered for precise flow management in industrial hydraulic systems. Manufactured by YUTAN, a recognized name in fluid power components, this valve utilizes a robust wet-armature solenoid design to shift a precision-ground spool within a high-grade cast iron body. The DSG-G03 series is a direct-mount, subplate-style valve conforming to ISO 4401 / CETOP 3 / NG6 interface standards, making it a versatile and interchangeable solution for controlling the start, stop, and direction of hydraulic actuators. The “2B2” spool configuration provides a closed-center, two-position function, while the “DL” designation indicates an integrated detent-lock mechanism, ensuring the spool remains in its last commanded position even after electrical power is removed. With a DC24V solenoid coil, this valve is ideally suited for integration into modern PLC-controlled automation lines, offering reliable, repeatable switching for demanding industrial duty cycles.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | DSG-G03-2B2-DL-DC24V |
| Spool Configuration | 2-Position, 4-Way, Closed Center (2B2) |
| Actuation Type | Solenoid Actuated with Detent Lock (DL) |
| Coil Voltage | DC24V (Direct Current) |
| Maximum Operating Pressure | Up to 315 bar (P, A, B ports); 160 bar (T port) |
| Rated Flow Capacity | Up to 60 L/min (nominal at 315 bar) |
| Mounting & Connection | ISO 4401 / CETOP 3 / NG6 Subplate Mounting |
| Hydraulic Fluid Compatibility | Mineral-based hydraulic oils (ISO VG 32-68), phosphate esters |
| Filtration Requirement | ISO 4406 Class 18/16/13 or better |
| Ambient Temperature Range | -20°C to +70°C |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (standard directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUTAN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a DC24V solenoid coil, this valve is ideally suited for integration into modern PLC-controlled automation lines, offering reliable, repeatable switching for demanding industrial duty cycles.
PRODUCT IMAGES

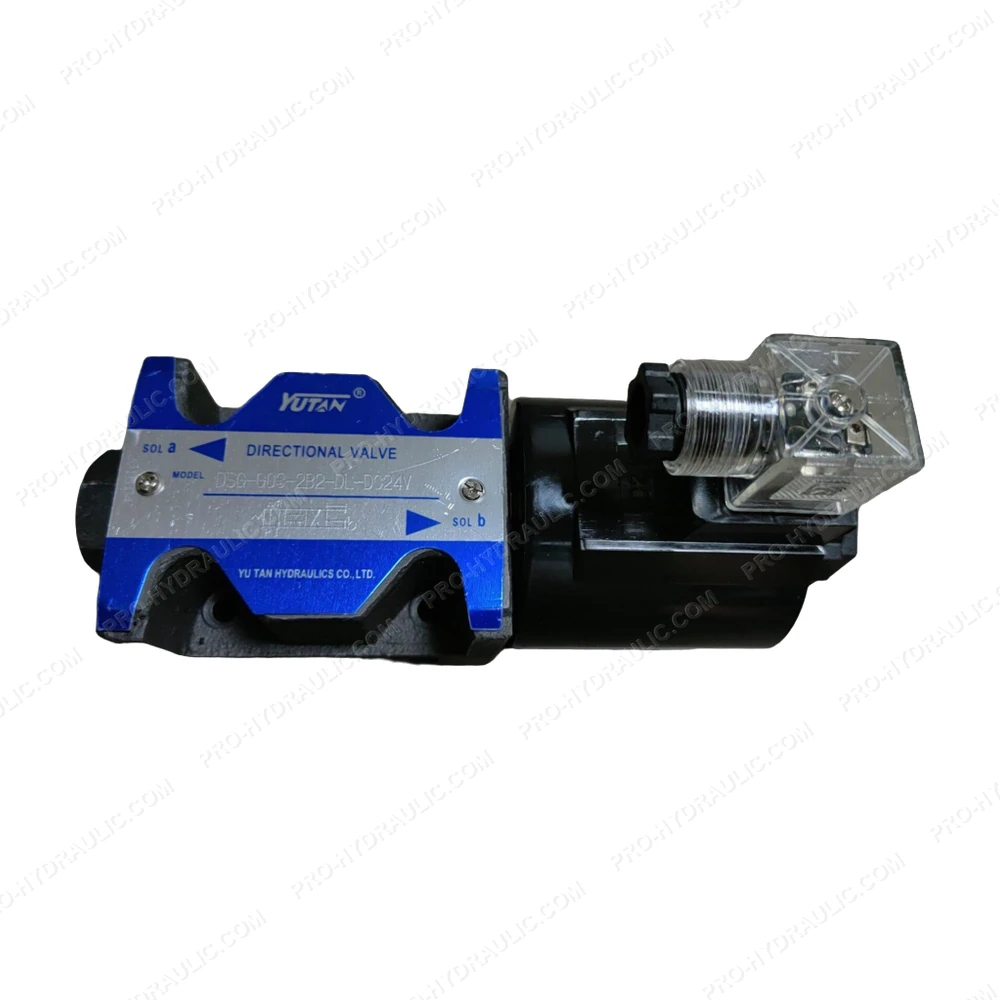

YUTAN DSG-G03-2B2-DL-DC24V Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTAN DSG-G03-2B2-DL-DC24V Solenoid Directional Control Valve. This China-made DC24V hydraulic component features a 4-way, 2-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
