Product Overview
The YUTIEN D4-03-3C4 is a solenoid-operated directional control valve engineered for precise hydraulic circuit switching in industrial power systems. Manufactured by YUTIEN, this valve utilizes a spring-centered, solenoid-actuated spool design to direct pressurized fluid flow between ports, enabling forward, reverse, and neutral functions within a hydraulic circuit. The D4-03-3C4 configuration features a 3-position, 4-way spool type with tandem center characteristics, making it a direct-fit solution for controlling double-acting cylinders and bidirectional hydraulic motors in continuous-duty industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | D4-03-3C4 |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Actuation Method | Dual Solenoid, Spring-Centered |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
Engineering Features & Advantages
- Precision Spool Metering: The D4-03-3C4 spool is precision-ground and matched to the valve body bore, ensuring minimal internal leakage, consistent flow metering, and repeatable directional response across the full pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid coils and hardened spool surfaces that resist wear, contamination, and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard subplate mounting patterns and electrical connector interfaces for drop-in installation.
- Fast Solenoid Response: High-performance solenoid actuators deliver rapid spool shifting for precise cycle timing in automated hydraulic sequences.
Typical Industrial Applications
The YUTIEN D4-03-3C4 solenoid directional control valve is widely deployed in plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for ram direction control, construction and marine hydraulic systems for actuator switching, and CNC machine tools for tool clamping and positioning circuits. Its 3-position, 4-way tandem center configuration also suits general industrial power units requiring reliable directional control of double-acting cylinders.
PRODUCT IMAGES

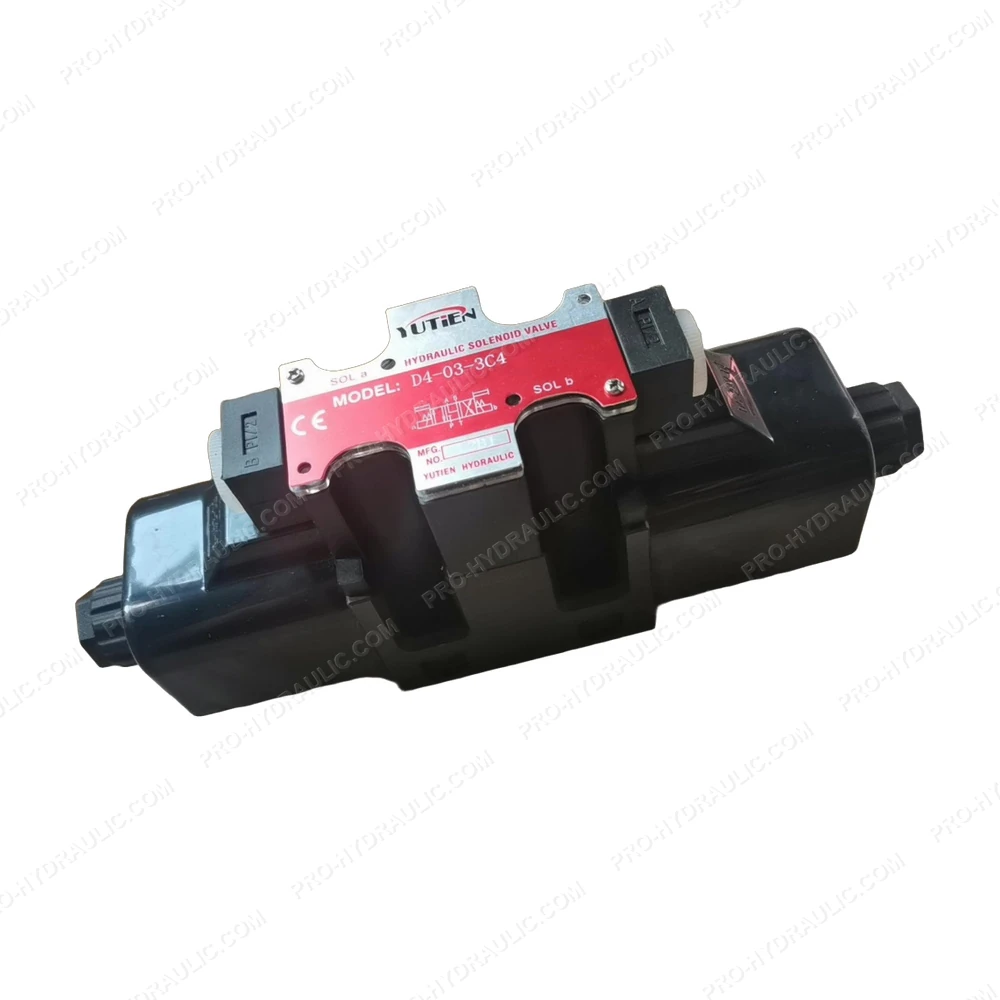

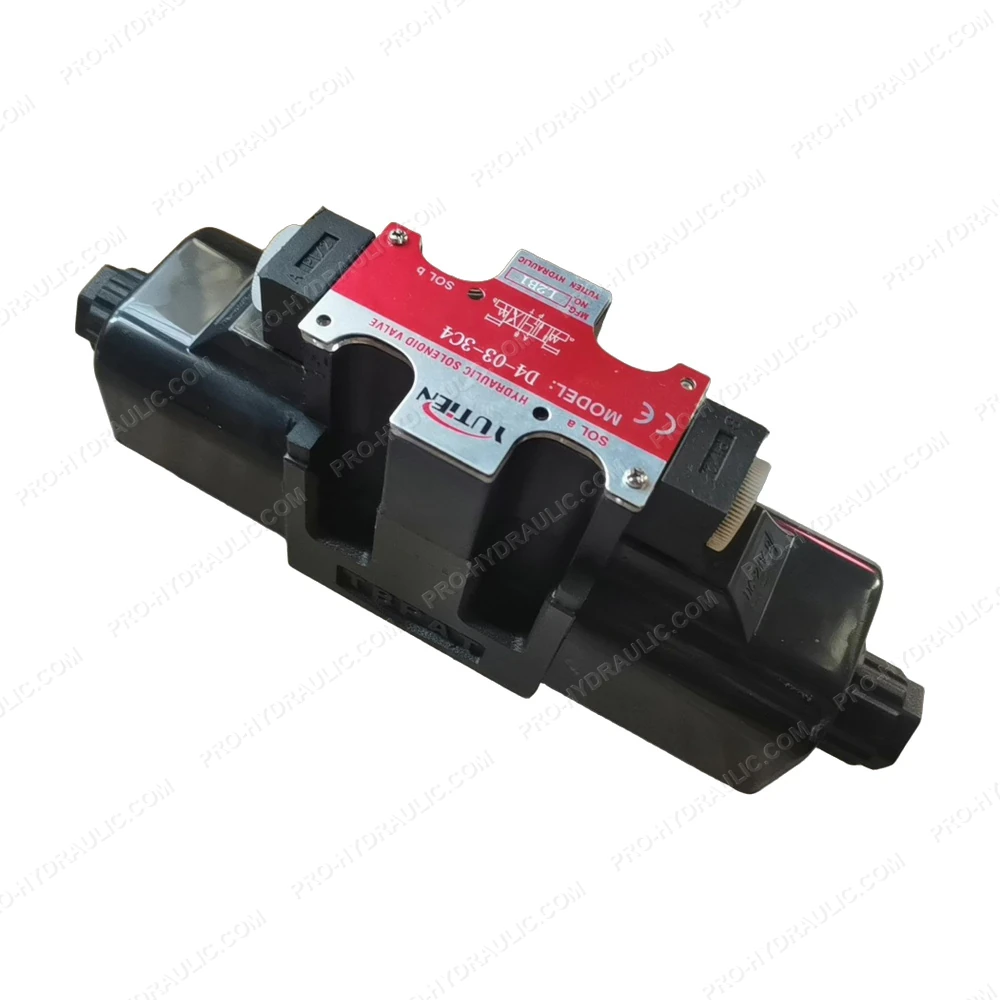

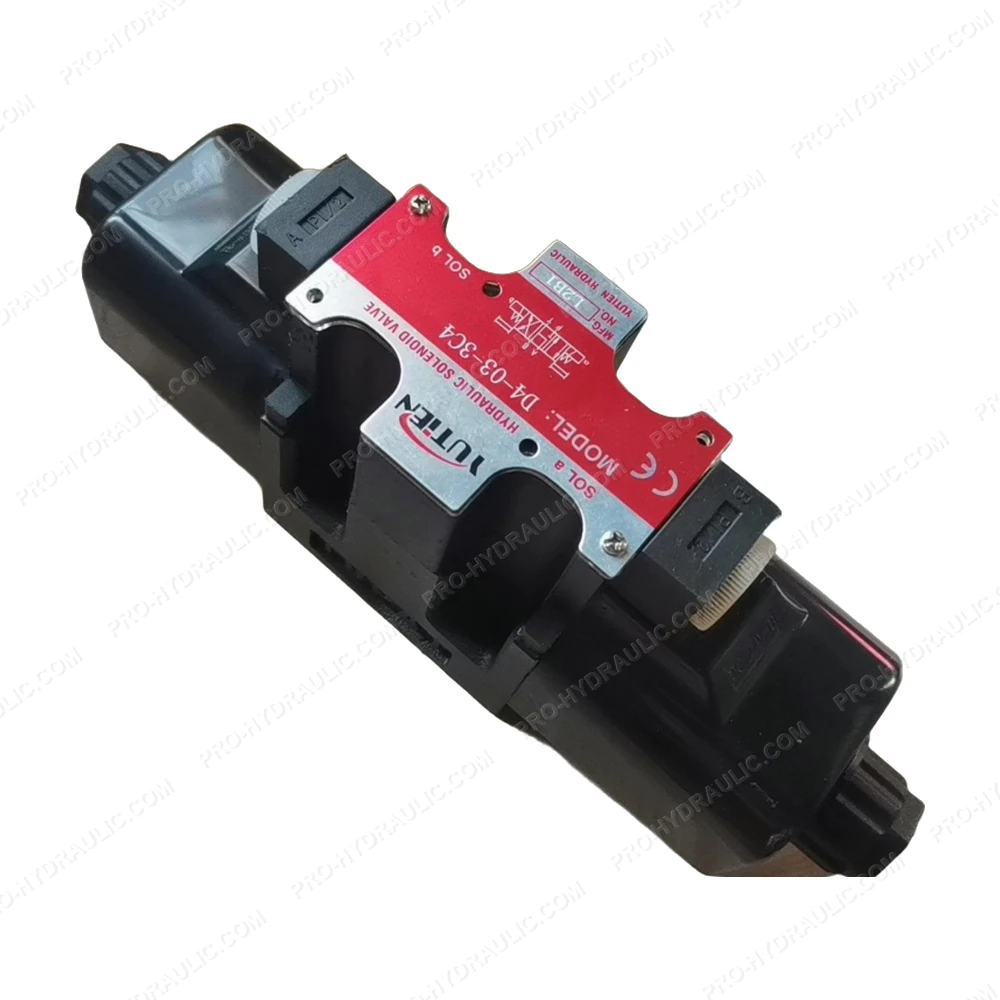

YUTIEN D4-03-3C4 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTIEN D4-03-3C4 Solenoid Directional Valve. This Taiwan-made hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
