Product Overview
The YUTIEN DSW-02-2B3B is a solenoid-operated directional control valve engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. Manufactured by YUTIEN, this valve features a 2-position, 3-way (2B3) spool configuration with spring return and single solenoid actuation. The DSW-02 series is designed for reliable switching and directional control of hydraulic actuators, offering fast response times and consistent performance in demanding industrial environments. Its robust construction and precision-machined spool ensure minimal internal leakage and long service life, making it a dependable component for a wide range of hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Standard Directional Control Valve |
| Model Designation | DSW-02-2B3B |
| Spool Configuration | 2-Position, 3-Way (2B3) |
| Actuation Type | Single Solenoid, Spring Return |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Solenoid Voltage | Standard AC/DC Options Available (e.g., 24V DC, 110V AC, 220V AC) |
| Seal Material | NBR / FKM (Standard Industrial Hydraulic Fluids) |
Engineering Features & Advantages
- Precision Spool Metering: The precision-ground spool and sleeve assembly ensures accurate flow direction control with minimal internal leakage and repeatable switching performance.
- Fast Solenoid Response: High-performance solenoid actuator delivers rapid valve shifting for responsive control of hydraulic actuators in automated systems.
- Spring Return Reliability: Mechanical spring return ensures the valve automatically returns to its default position upon de-energization, providing fail-safe operation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with durable coil insulation and wear-resistant spool materials.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The YUTIEN DSW-02-2B3B solenoid directional control valve is widely used in hydraulic systems requiring reliable directional control of fluid flow. Typical applications include plastic injection molding machines, metallurgical presses, CNC machine tools, construction and marine hydraulic systems, and general industrial automation equipment where precise actuator control and dependable switching performance are essential.
PRODUCT IMAGES

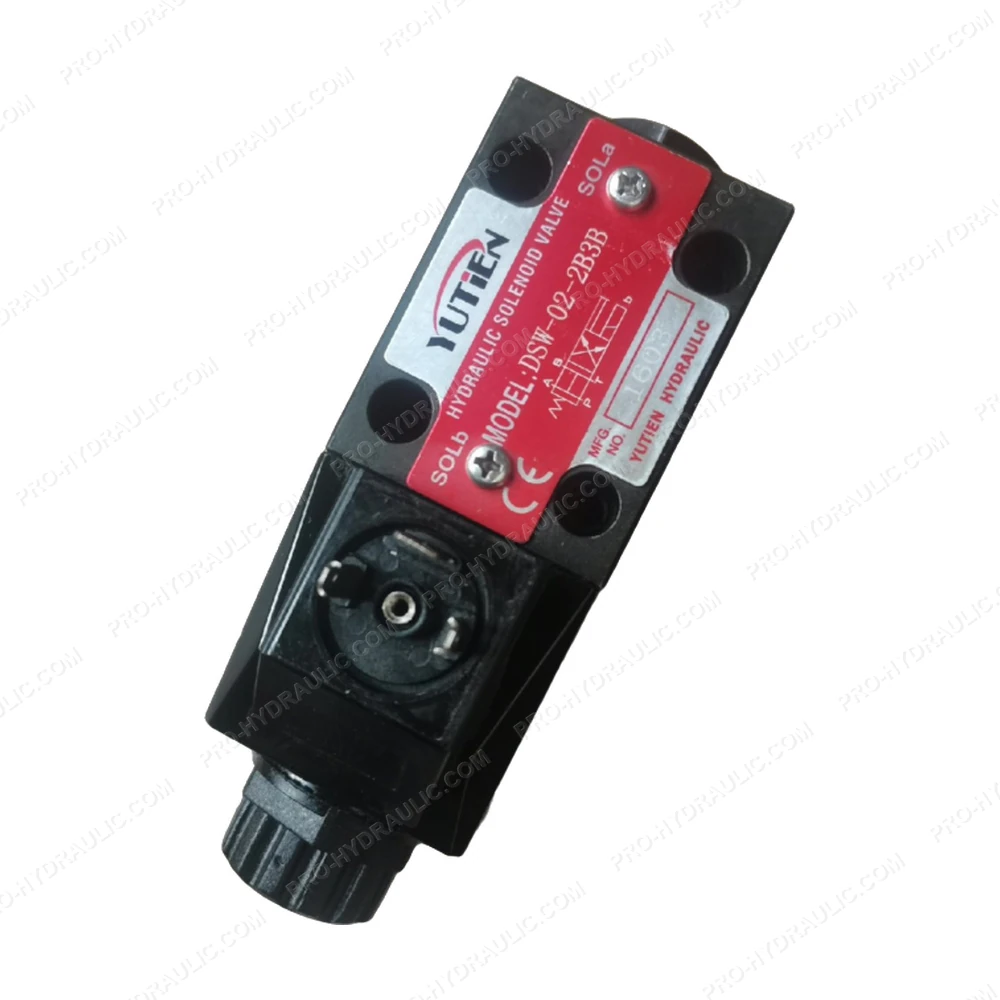

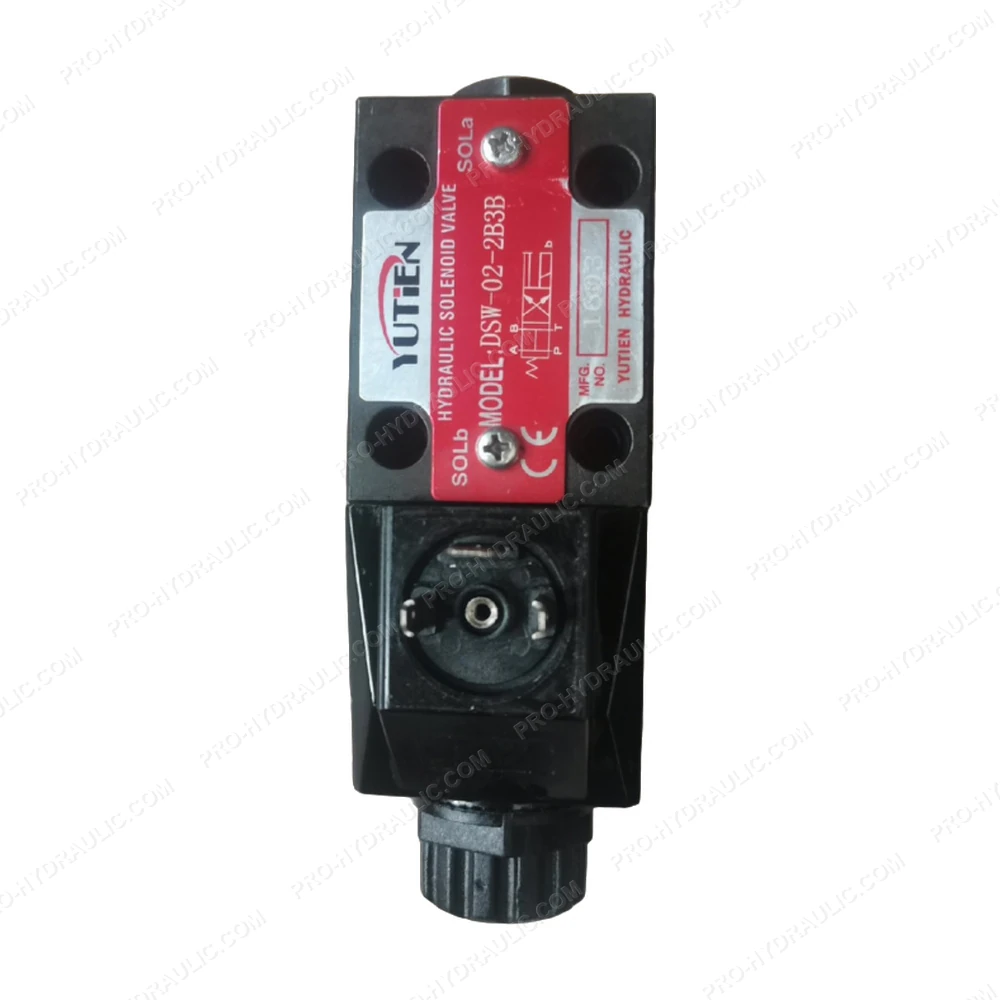

YUTIEN DSW-02-2B3B Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTIEN DSW-02-2B3B Solenoid Directional Control Valve. This Taiwan-made hydraulic component features a wet-pin AC solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
