Product Overview
The YUTIEN DSW-02-3C4 is a direct-acting, solenoid-operated directional control valve engineered for precise control of hydraulic fluid flow direction in industrial circuits. Manufactured by YUTIEN, this valve features a 3-position, 4-way (3C4) spool configuration, allowing it to manage extend, hold, and retract functions of double-acting actuators with a single component. The DSW-02 series is designed around a robust wet-armature solenoid design that ensures consistent shifting force and long service life under demanding duty cycles. As a standard directional control valve, it serves as a critical interface between the hydraulic power source and the actuating elements in systems requiring reliable, repeatable directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valves > Standard Directional Control Valves |
| Model Designation | DSW-02-3C4 |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Actuation Type | Solenoid Operated (Direct Acting) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Nominal Flow Rate | Up to 40 L/min (dependent on spool and pressure drop) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Solenoid Voltage | Common Industrial Options (e.g., 24V DC, 110V AC, 220V AC) |
| Seal Material | NBR / FKM (Standard Industrial Hydraulic Fluids) |
Engineering Features & Advantages
- Precision Spool Metering: The 3C4 spool design provides accurate and repeatable control of flow direction, minimizing internal leakage and ensuring consistent actuator response in both energized and de-energized states.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust solenoid and hardened spool bore that resist contamination and wear, extending maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard subplate mounting patterns and electrical connections, allowing drop-in replacement without system modification.
- Fast Response Time: Direct-acting solenoid design delivers rapid spool shifting, enabling high-cycle operation and precise timing in automated hydraulic sequences.
- Versatile Circuit Integration: Compatible with a wide range of hydraulic fluids and system pressures, making it suitable for both new designs and retrofit applications.
Typical Industrial Applications
PRODUCT IMAGES

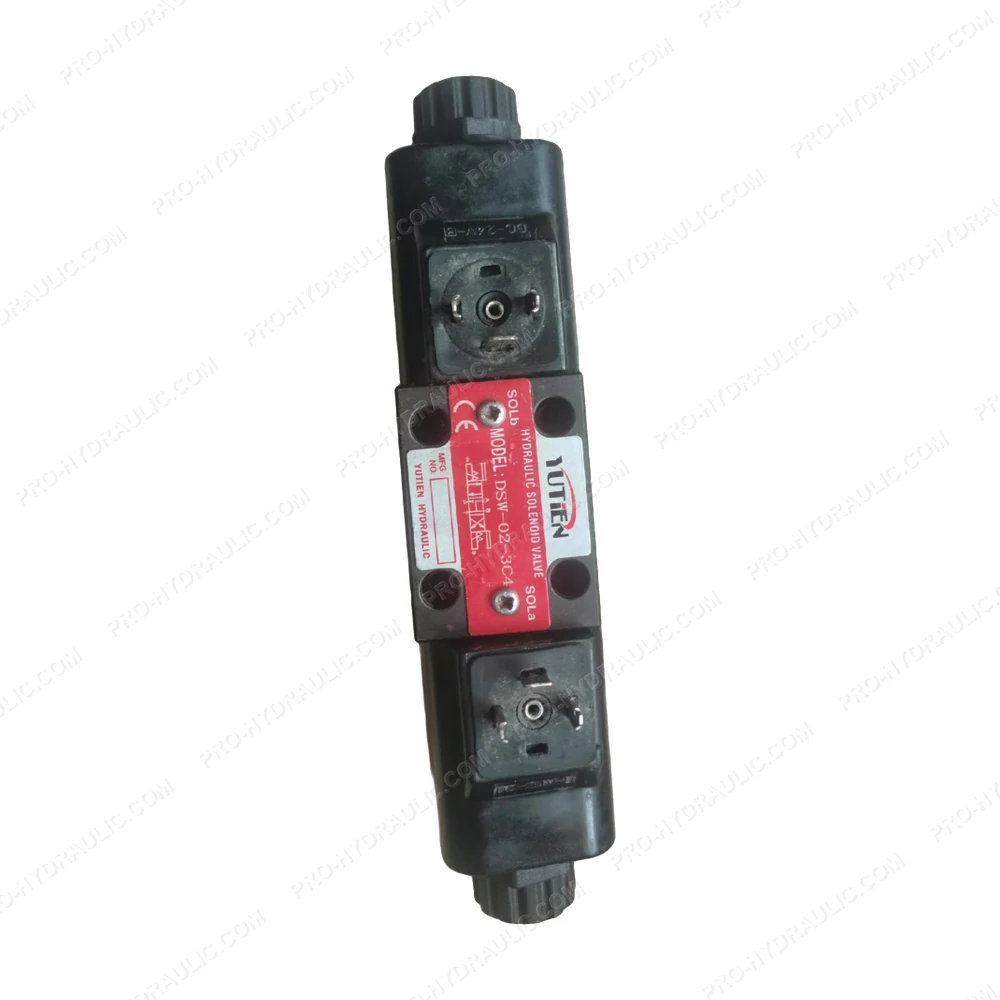

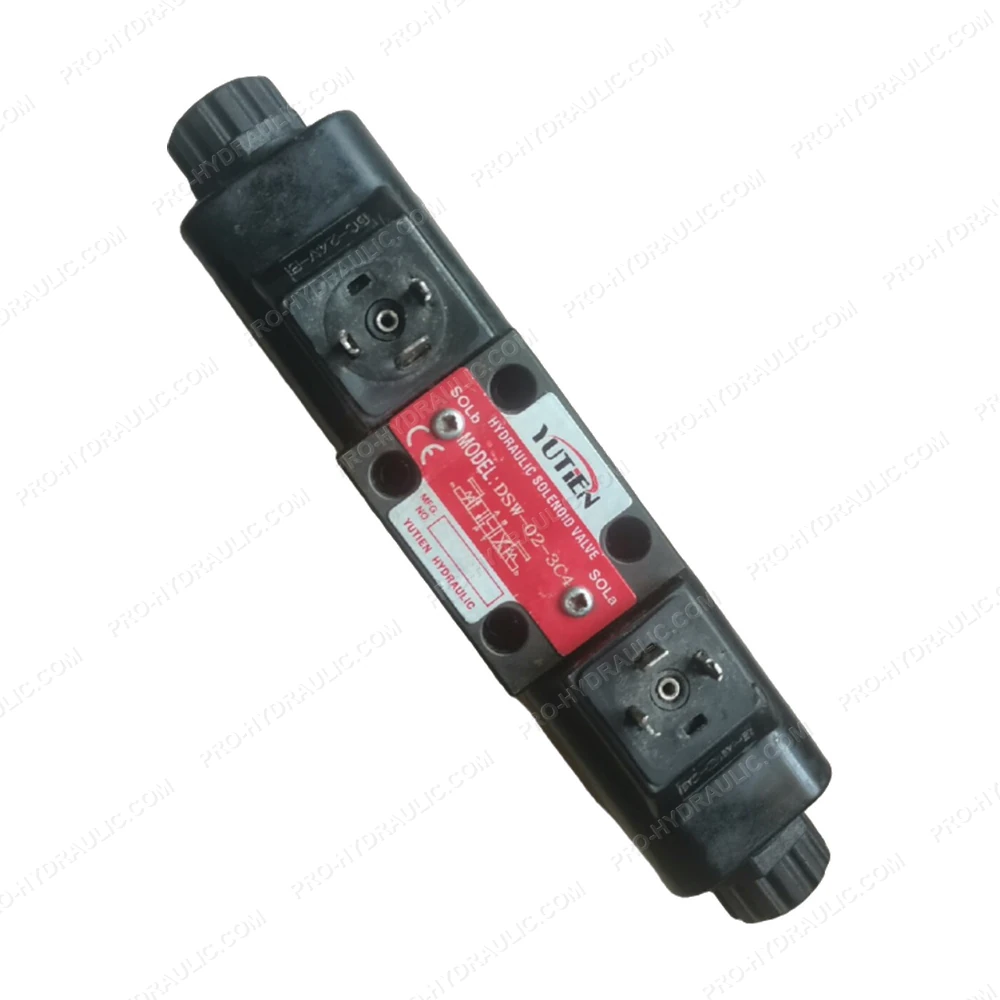

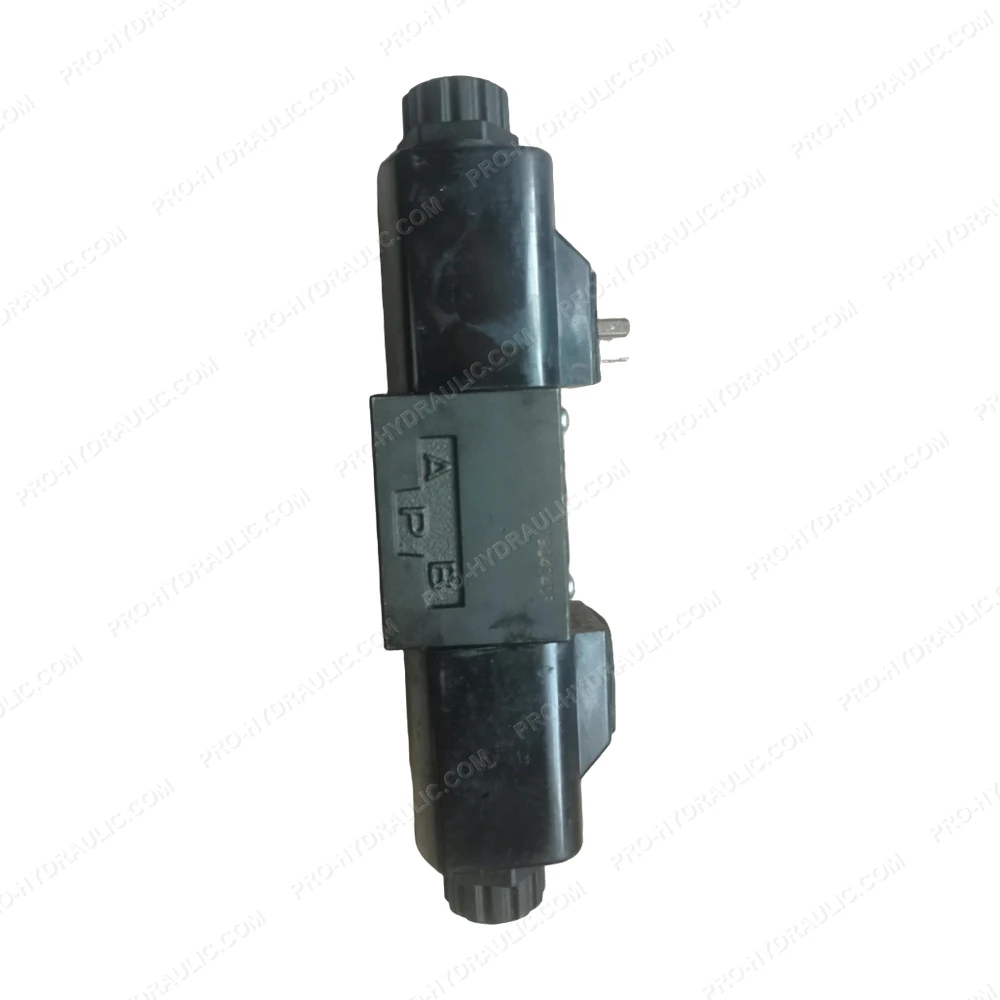

YUTIEN DSW-02-3C4 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTIEN DSW-02-3C4 Solenoid Directional Valve. This Taiwan-made hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
