Product Overview
The YUTIEN DSW-02-3C6 is a direct-acting solenoid-operated directional control valve engineered for precise flow direction management in industrial hydraulic circuits. Manufactured by YUTIEN, a recognized supplier of hydraulic control components, this valve utilizes a robust solenoid actuator to shift a precision-ground spool within a high-tolerance valve body, thereby directing pressurized fluid to the designated work ports. The DSW-02-3C6 configuration features a 3-position, 6-way spool design (3C6), enabling versatile circuit control for double-acting actuators and complex sequencing operations. As a standard directional control valve, it serves as a critical control element in hydraulic power units, machine tools, and automated production lines, ensuring reliable start, stop, and reversal of actuator motion with consistent response characteristics.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Standard Solenoid Directional Control Valve |
| Model Designation | DSW-02-3C6 |
| Spool Configuration | 3-Position, 6-Way (3C6) |
| Actuation Method | Solenoid Actuated (Direct Acting) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Nominal Flow Rate | Up to 40 L/min (dependent on spool position and pressure differential) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Seal Material | NBR (Buna-N) / FKM Optional |
Engineering Features & Advantages
- Precision Spool & Bore Matching: The spool and valve body bore are machined to micron-level tolerances, minimizing internal leakage and ensuring accurate flow metering and repeatable directional control across all positions.
- Fast Solenoid Response: High-performance solenoid coils provide rapid shifting with consistent actuation force, reducing cycle times and improving machine throughput in automated hydraulic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with durable coil insulation and hardened spool surfaces that resist wear and contamination-induced sticking.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to manifolds or piping.
- Versatile Circuit Integration: The 3C6 spool configuration supports complex flow paths for double-acting cylinders, enabling advanced control sequences with a single valve.
Typical Industrial Applications
The YUTIEN DSW-02-3C6 solenoid directional control valve is widely deployed in heavy industrial scenarios requiring reliable directional control of hydraulic actuators. Common applications include plastic injection molding machines for mold open/close and ejection sequences, metallurgical presses for ram advance and retract control, construction and marine hydraulic systems for steering and implement circuits, and CNC machine tools for
PRODUCT IMAGES

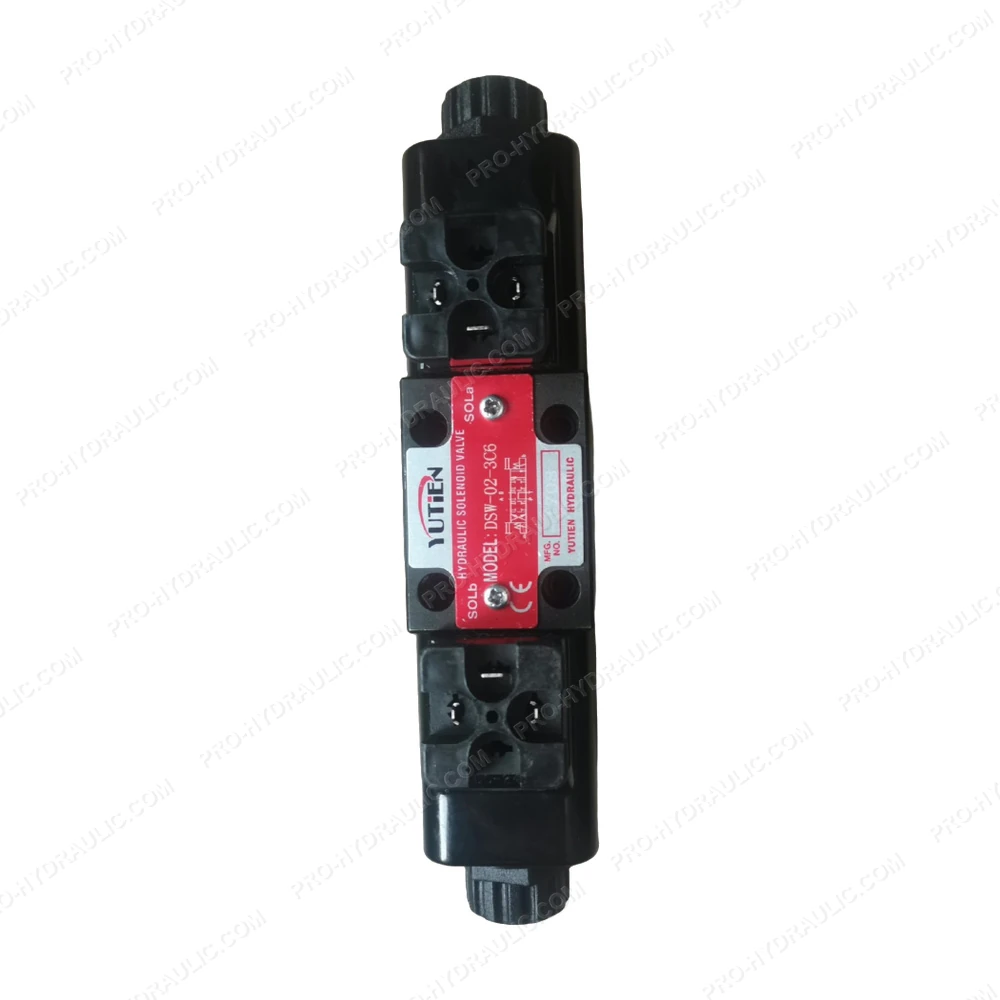

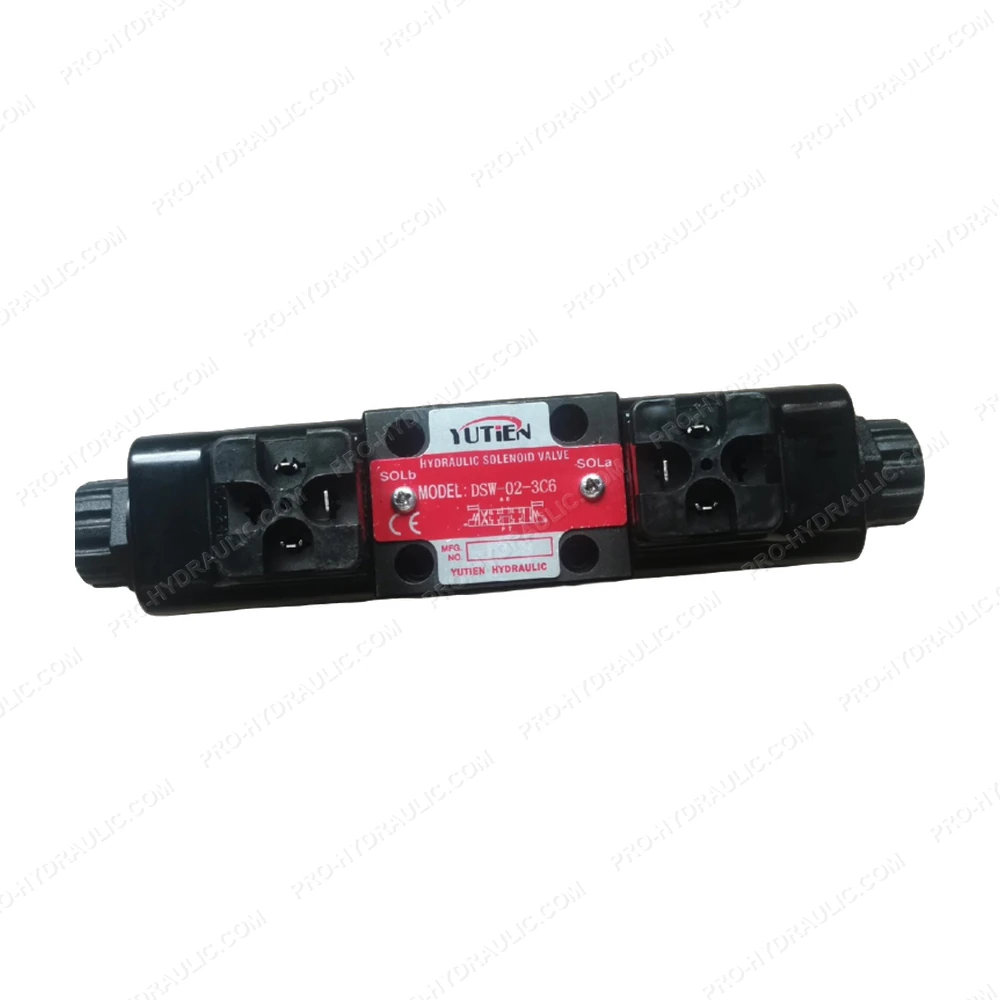

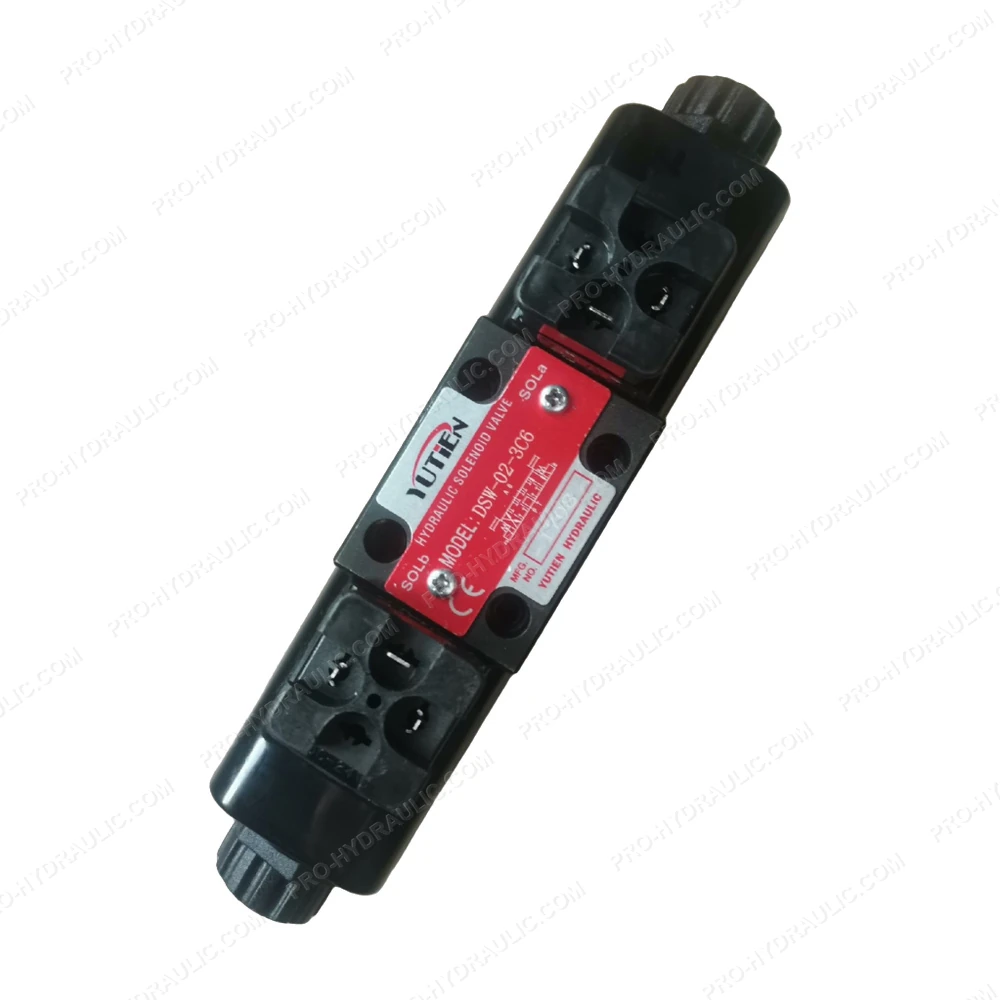

YUTIEN DSW-02-3C6 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTIEN DSW-02-3C6 Solenoid Directional Valve. This Taiwan-made hydraulic component features a wet armature design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
