Product Overview
The YUTIEN PRCG-03-2 is a pilot operated pressure reducing valve engineered to maintain a stable, preset downstream pressure regardless of fluctuations in upstream supply pressure or changes in flow demand. Manufactured by YUTIEN, a recognized name in hydraulic component production, this valve belongs to the PRCG series of pressure control valves and utilizes a balanced pilot-operated poppet-and-spool architecture. The pilot stage senses outlet pressure and modulates the main spool position, delivering precise secondary pressure regulation across the full operating flow range. With its 03 (NG10 / CETOP 5) size designation, the PRCG-03-2 is designed for inline or subplate mounting in industrial hydraulic power units, manifolds, and machine circuits where consistent reduced pressure is critical to actuator and control loop performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pilot Operated Pressure Reducing Valve (Pressure Control Valve) |
| Model Designation | PRCG-03-2 |
| Nominal Size | NG10 / CETOP 5 (03 size) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar inlet) |
| Secondary Pressure Adjustment | Infinitely adjustable via pressure adjustment screw / knob |
| Control Principle | Pilot operated, balanced spool with pressure compensation |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401 / CETOP standards |
| Hydraulic Fluid Compatibility | Mineral-based hydraulic oils (ISO VG 32–68 typical) |
Engineering Features & Advantages
- Precision Performance: The pilot-operated design provides accurate, repeatable secondary pressure regulation with minimal deviation from the set value, even under varying flow and upstream pressure conditions.
- Stable Downstream Pressure: Balanced spool construction compensates for pressure forces, ensuring smooth and consistent reduced pressure output for sensitive downstream circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and robust sealing for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
- Adjustable Setpoint: Convenient external adjustment allows operators to fine-tune the reduced pressure to match specific circuit requirements.
Typical Industrial Applications
The YUTIEN PRCG-03-2 is widely deployed in hydraulic systems requiring reliable secondary pressure control, including plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units. It is also commonly used in clamping circuits, pilot line pressure regulation, and any application where a stable reduced pressure must be maintained independent of main system pressure fluctuations.
PRODUCT IMAGES

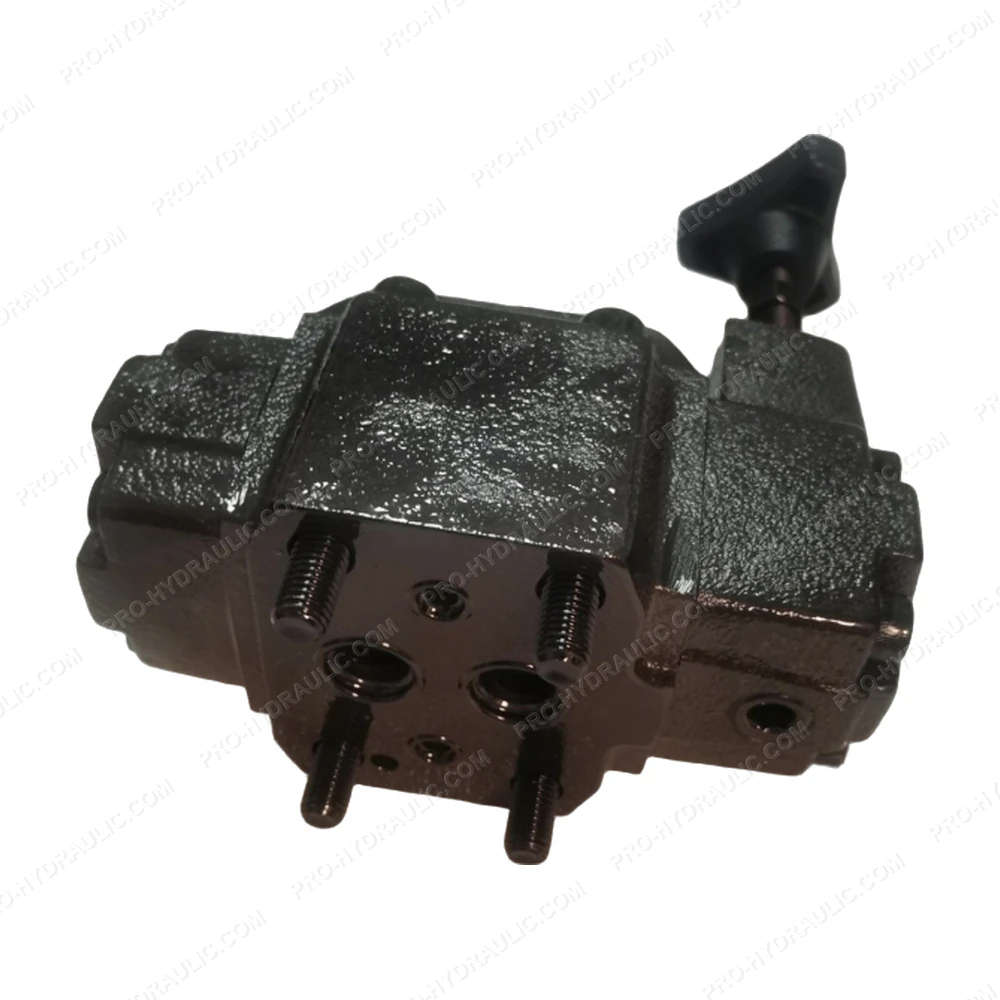

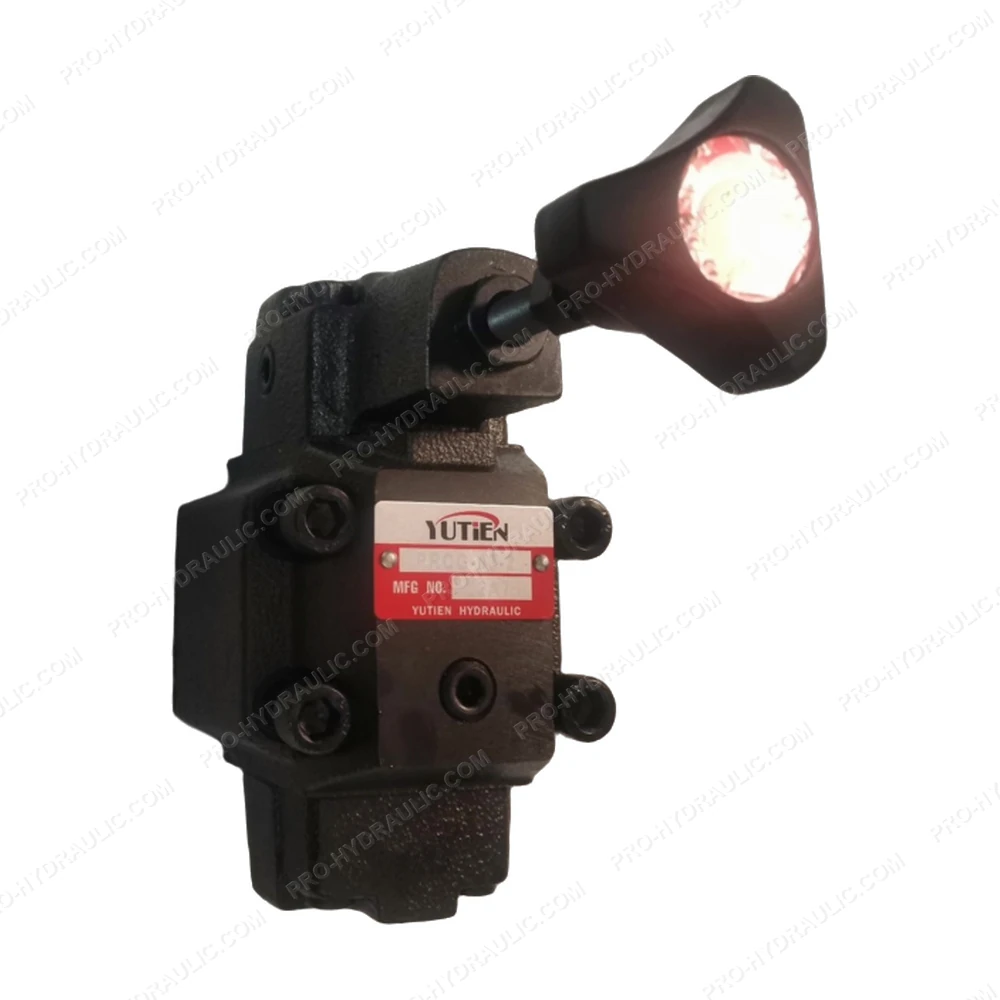

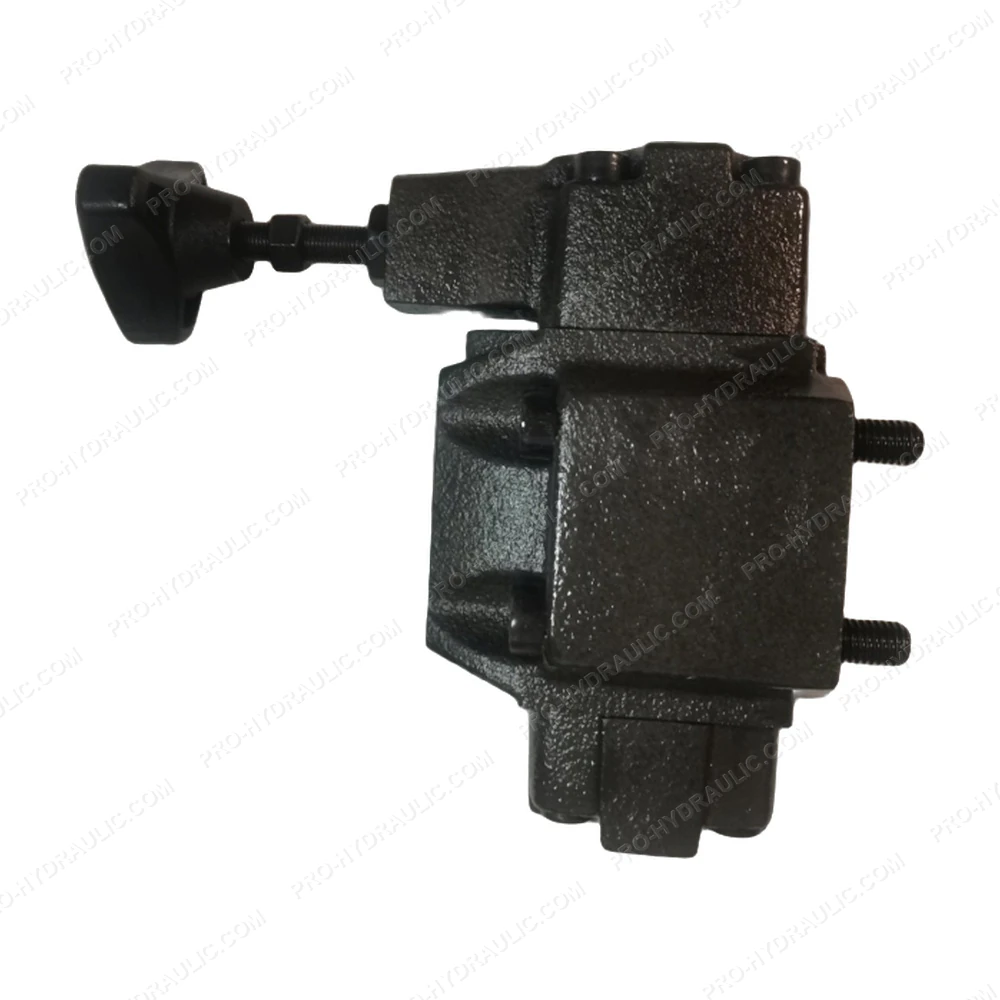

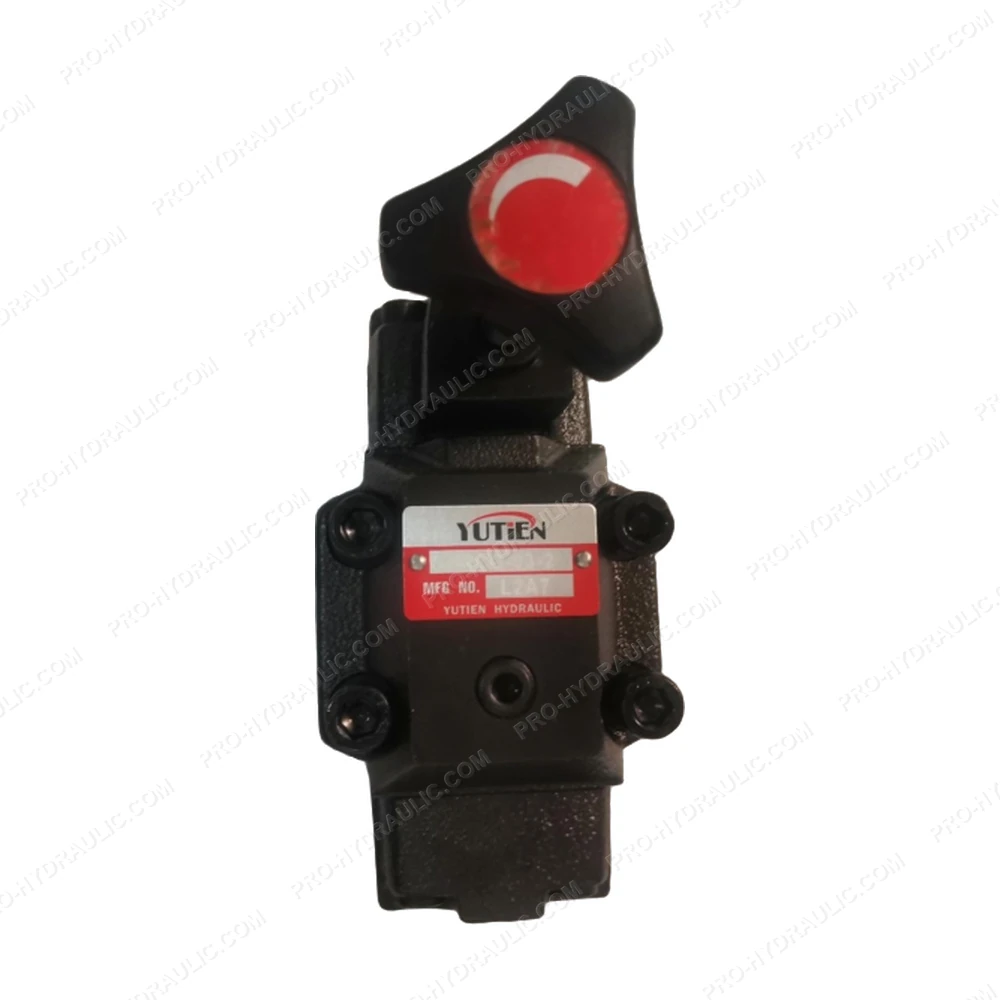

YUTIEN PRCG-03-2 Pilot Operated Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUTIEN PRCG-03-2 Solenoid Directional Control Valve. This Taiwan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
